Overview

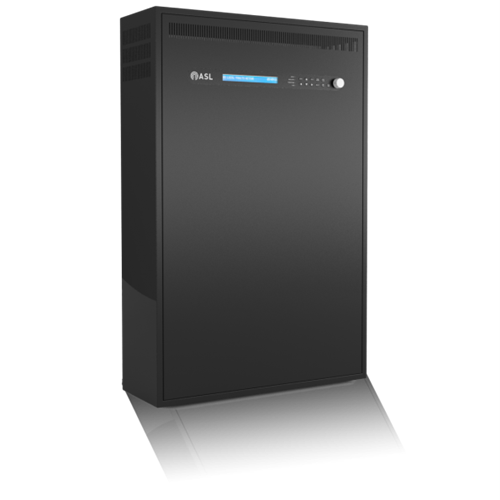

ASL’s INTEGRA all-in-one network enabled voice alarm solution is available with three, five, seven and ten channels of amplification. The unit has 12 audio inputs and internal storage for up to 64 recorded messages. With a maximum power of 2000W, integrated audio-over-IP networking, powerful audio processing, and integrated battery charger and battery mounting shelf all in a compact wall-mount enclosure, INTEGRA provides a complete voice alarm solution for both medium to large centralised and decentralised PAVA systems.
Network Audio
Up to 32 INTEGRA can be linked over IP to enable broadcasts from any location to any combination of zones in large decentralised systems. ASL’s Ethernet switches enable a voice alarm compliant ring network topology. INTEGRA and the rack mount equivalent VIPEDIA-12 interoperate seamlessly. Each INTEGRA can process up to 6 concurrent audio channels.
Amplification
Three variants are available, with either 3, 5,7 or 10 channels of amplification. One amplifier can be configured as either a standby or active amplifier. Each individual amplifier can deliver up to 500W, with a total maximum overall load on one INTEGRA of 2000W.
Each amplifier provides dual isolatable A and B loudspeaker circuits and supports both DC and Impedance line surveillance. For applications which require maximum availability, two internal standby amplifiers are supported (requires the optional V2000-STBY module.)
Audio Inputs
INTEGRA supports ASL MPS and EMS paging microphones. Two of the twelve microphone inputs provide hardware bypass to ensure continued all-call Emergency microphone operation even if the INTEGRA router’s DSP or CPU have failed. Up to 64 monitored recorded messages can be stored internally, with a total duration of up to 40 minutes.
Audio Processing
Powerful DSP based audio processing include input dynamics, individually adjustable digital output delay of up to 5 seconds, and 10 band parametric equalisation.
Control
The unit also includes 12 general purpose control inputs,12 general purpose control outputs and two relay outputs. Inputs are typically used to interface INTEGRA to the Fire Alarm System. Control capability can be expanded to more than 100 GPIO connections using the BMB01 unit if required.
Network Switch
In EN54-16 and other Voice Alarm Architectures, each INTEGRA also requires a suitable Ethernet switch. Both single and multimode fibre options are available. Please see part codes in the optional accessories section below
Integra Part Codes
INTEGRA-03 ................................................................................ 3 x 500W Amp Channel / 2000W Max Single Box Voice Alarm System
INTEGRA-05 ................................................................................ 5 x 500W Amp Channel / 2000W Max Single Box Voice Alarm System
INTEGRA-07 ................................................................................ 7 x 500W Amp Channel / 2000W Max Single Box Voice Alarm System
INTEGRA-10 .............................................................................. 10 x 500W Amp Channel / 2000W Max Single Box Voice Alarm System
