Vue i-6 - 6" Two way Speaker 8ohm - white

Product Code: VU-I-6W-8OHM

Brand
Vue Audiotechnik~
$165.00 inc GST
RRP P.O.A.

Out of Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



Unspecified
False False
Technical Specifications
Brands Vue Audiotechnik
Speaker Type Stage / Stadium
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

Vue Audiotechnik i-6 - 6" Two way Foreground Loudspeaker Speaker 8ohm (Single, White)

i-Class systems are designed for AV contractors seeking a higher performance alternative to typical compact plastic box loudspeakers systems. The i-6 & i-6a combines professional-grade components and a resonate free wood enclosure to deliver sonic performance far beyond competitive systems.


  • 6.5“ polypropylene LF driver with rubber surround and
  • 1“ (25 mm) voice coil
  • 1“, ferrofluid, neodymium, silk-dome tweeter
  • 70º  x 70º  coverage
  • 80 Hz – 20 kHz frequency response
  • Max long term output 104 dB SPL
  • High-density wood enclosure with durable textured finish
  • Variable position yoke bracket mounting hardware included

The highly flexible i-6 and i-6a two-way loudspeakers are ideal for mid-field applications where greater output and frequency response are required. Both models combine a professional-grade 6.5-inch woofer with a 1-inch, silk-dome, ferrofluid tweeter. Both drivers are mated to a high-quality crossover network and housed in a robust, high-density wood enclosure with a rugged industrial-grade coating. Connections are quick and easy thanks to recessed, phoenix input terminals. Included mounting hardware ensures quick installation on a flat, horizontal or vertical surface.

Applications

  • Restaurants and cafes
  • Bars and clubs
  • Corporate facilities
  • House of worship
  • Front-fill & under-balcony coverage
  • Retail outlets
  • Airports

SPECIFICATIONS

  • DESCRIPTION: Passive 6-inch surface-mount foreground system

ACOUSTIC DATA

  • Frequency Response (+- 3 dB): 80 Hz – 20 kHz
  • Frequency Range (-10 dB): 60 Hz – 20 Khz
  • Sensitivity (1 W/1 m): 86 dB
  • Power Handling Long Term: 70 watts (Switchable 70/100V Taps)
  • Power Handling Program: 140 watts
  • Max Peak SPL(band limited pink noise 6 dB crest factor): 108 dB SPL
  • Max SPL Long Term (AVG SPL @1 band limited pink noise 6 dB crest factor)): 102 dB SPL
  • Coverage Horizontal: 70 degrees – 6 dB
  • Coverage Vertical: 70 degrees – 6 dB

TRANSDUCER DATA

  • LF Driver Description: 6.5” polypropylene, rubber surround, 1” voice coil, ferrite, 10 mm winding, 5 mm gap height, 16 Ohms
  • HF Driver Description: 1” silk dome, 8 Ohms, neodym, ferrofluid, waveguide
  • Impedance and Transformer Taps: 8 Ohm and 4 transformer wattage taps switched

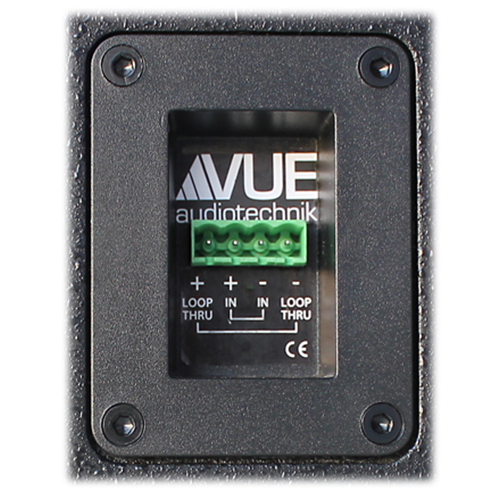

  • Connectors: 4-pin Pheonix type connector

PHYSICAL DATA

  • Cabinet Material: High density wood composite
  • Cabinet Surface: Black polyurethane coating

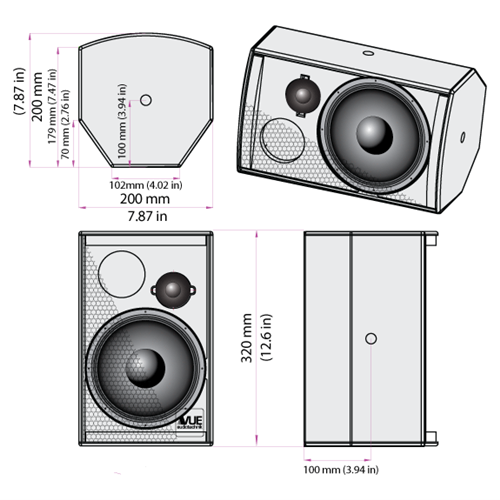

  • Dimensions (H x W x D): 12.6 x 7.87 x 7.85 in (320 x 200 x 200 mm)
  • Weight: Net: 8.7 lbs (3.94 kg) / Shipped: 13.5 lbs (6.12 kg)
