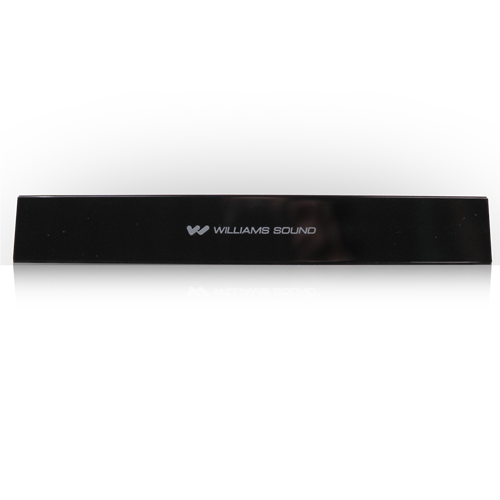

IR T2 SOUNDPLUS® MEDIUM-AREA INFRARED TRANSMITTER

Building on years of infrared audio delivery expertise, Williams Sound is pleased to introduce the new SoundPlus® IR T2 commercial-grade, medium-area infrared transmitter. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness -- all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.

This device has replaced the WIR TX75.

System includes
  • (1) IR T2 infrared transmitter
  • (1) BKT 024 wall / ceiling mounting bracket
  • (1) TFP 057 international power supply with line cord

Specifications

  • Dimensions: 9.0" W (229 mm) x 3.8" D (97 mm) x 1.4" H (36 mm)
  • Weight: 0.84 lb. (0.38 kg)
  • Color: Black
  • Power Supply: TFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
  • DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off carrier when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Baseband Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
  • Coverage Area: Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver

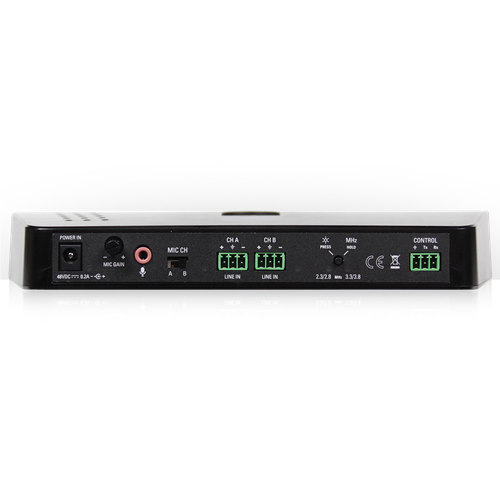

  • Audio Inputs: Line inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
  • Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB (line input)
  • Frequency Response:
    • 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
    • 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit: Wall or Ceiling mount: BKT 024 Omnidirectional mount
  • Compatible Receivers: WIR RX22-4, WIR RX18
  • Warranty: 5 years
  • Approvals/Regulatory Compliance: CE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE

How It Works

The IR T2 can be controlled remotely via RS-232 commands. The commands include:
  • Powering the unit on/off
  • Remotely setting the IR frequency (2.3/2.8 or 3.3/3.8)
  • Muting the outgoing audio without powering off
  • Turning back panel LEDs on or off
  • Troubleshooting abilities
A full list of commands is available on the downloads tab in the IR T2 Programmer's Guide.

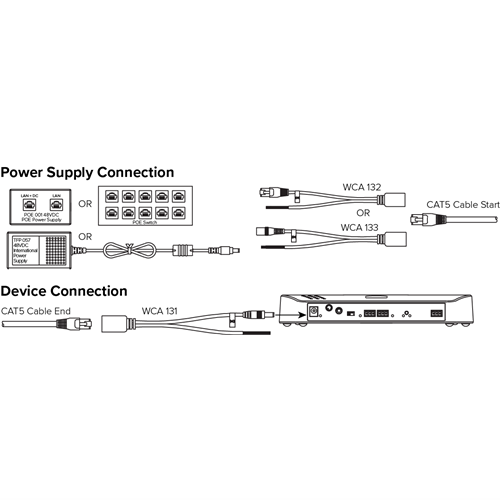

The power can be supplied by the included power supply, or over a Power Over Ethernet (POE) connection. Using POE KT 1 or POE KT 2, the POE connection and an additional run for RS-232 commands or audio can be run through one cable. For more information, go to the downloads tab and read the IR T2 POE Wiring Guide.
