FLEXUS FX100 Audio Analyzer

600 060 000 (NT-FX100)

Brand
NTI Audio
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
True False
Technical Specifications
Brands NTi Audio
Application Live sound PA rental
Application Quality Control
Device Type Audio analysers
Device Type Audio generators
Device Type Digital audio analysers
Device Type Sound level meters
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

Fast. Precise. Reliable

  • Audio Generator & Analyzer
  • For laboratory and quality control
  • Audio and acoustic measurements

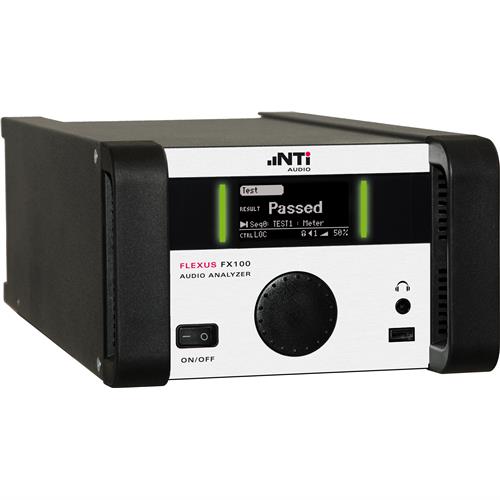

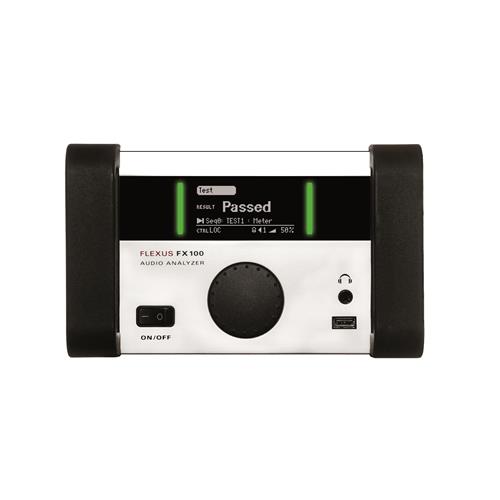

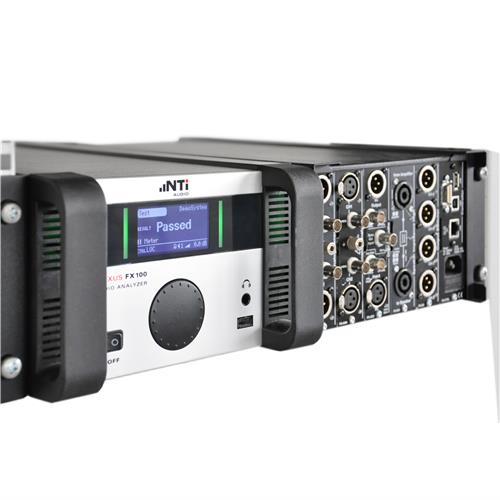

The FX100 is a unique professional audio analyzer that adapts to your application. The instrument offers comprehensive measurements including Passed/Failed tests in under one second. You may customize the system for two or four parallel channel operation, speaker impedance testing and digital audio measurements. Switcher modules provide additional outputs and inputs.

Online Demonstration

NTi's expert engineers can demonstrate the FLEXUS system tailored to your specific application. To arrange this, please contact us with your specific requirements and we will put you in touch with an engineer at NTi who will prepare an online demonstration for you.

Contact Amber Technology to arrange an online demonstration


Audio and Acoustic Testing

Quality control of audio products is an essential component of the manufacturing process and the service lab. Based on your requirements, the FX100 is configured for basic functional tests or complete performance tests, including documentation of results. Use the same configuration in your lab and on your production floor.

Scalable Architecture

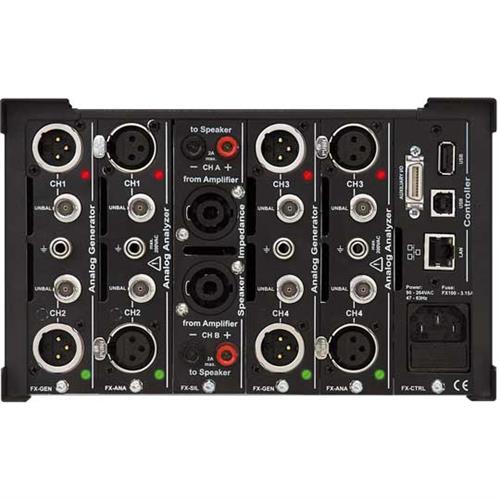

The modular hardware concept allows customization of the FX100 for two or four parallel channel operation. An optional impedance module supports speaker measurements. The FLEXUS Audio Analyzer grows with future measurement applications.



More Channels

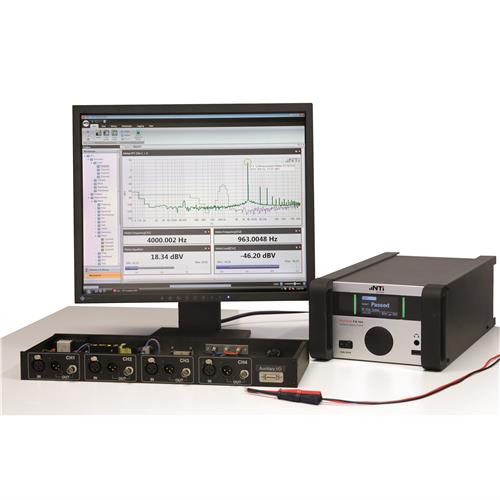

Individual input switcher and output switcher modules may extend the audio analyzer to 14 input channels or 14 output channels connected simultaneously. The software suite FX-Control may operate several FX100 in parallel thus offering multiple-channel measurements.

Parallel Measurements

The FLEXUS Audio Analyzer acquires all measurement functions in parallel. State-of-the art measurement technologies offer fast GlideSweeps, detailed stepped sweeps and a continuous meter mode.

Superior Specifications

The wide level range from 1 μV - 200 Vp together with a THD+N of typical -104 dB offers comprehensive audio and acoustic analysis for research and design lab.

Frequency Range 5Hz - 80kHz and DC

The FX100 Audio Analyzer offers a wide frequency range up to 80 kHz and simultaneous measurement of the DC voltage. Thus the FX100 provides detailed DC and audio frequency analysis within the same configuration.

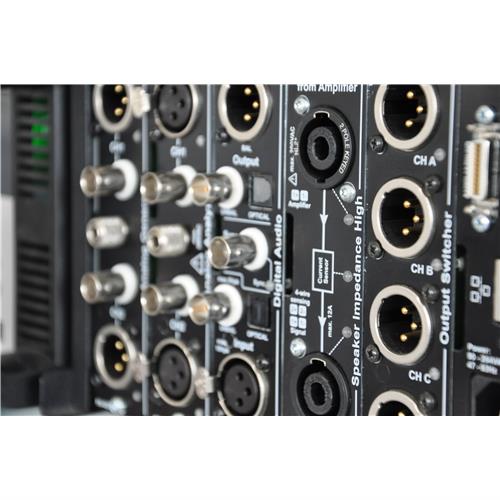

Build Your Audio Analyzer

Whatever your application is, the adaptive FLEXUS system fits to it. Reduce the need for external devices. Just plug-in the required module(s), connect the FX100 to your device under test and off you go!
  • Additional generator / analyzer channels
  • On-board amplifier for speaker testing
  • Digital Audio
  • Output / Input Switchers
Due to its flexibility, the FX100 can be used in virtually any audio test environment, such as R&D labs, broadcast stations, service centers, PA rental companies or production facilities. But even the requirements of more demanding applications such as industrial noise analysis or the verification of PA installations etc. can be met.
