Products

AV switching and distribution

This is a Special Order Item

DIgital to Analogue converter with dolby digital downmix EXP-CON-DAC-D-V2

Product Code: WY-EXPCONDACD

Brand
Wyrestorm
RRP $289.00


Quantity In Cart:
Unit of Measure
EACH



2 Year
True False
Technical Specifications
Brands WyreStorm
Input/output type Coax
Input/output type RCA
Input/output type Toslink
Product type Digital Audio Converters (DAC)
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

WyreStorm Essentials™ Dolby™ 5.1 Downmixer


SKU: EXP-CON-DAC-D

The WyreStorm EXP-CON-DAC-D is a Digital to analogue audio converter capable of taking up S/PDIF audio encoded as Dolby Digital 5.1 from a compatible coaxial or TOSLINK audio source and downmixing to analogue stereo. Additionally the switchable digital output allows the signal to be output in its original form or downmixed like the stereo RCA output.

AUDIO CONVERSION MADE EASY
If quick, reliable and cost-effective conversion of digital audio to analog is a requirement for your project, the EXP-CON-DAC-D is the perfect solution. Converting LPCM or Bitstream audio to stereo analogue for connection to legacy stereo audio systems or 2ch amplifiers.


DOLBY DOWN-MIXING
Licensed by Dolby Laboratories to convert 5.1 compressed bitstream from a surround sound source device such as Blu-Ray players, cable & satellite receivers or media devices, the EXP-CON-DAC-D properly downmixes the 6 channel audio stream to the stereo RCA outputs.


MULTIPLE I/O OPTIONS

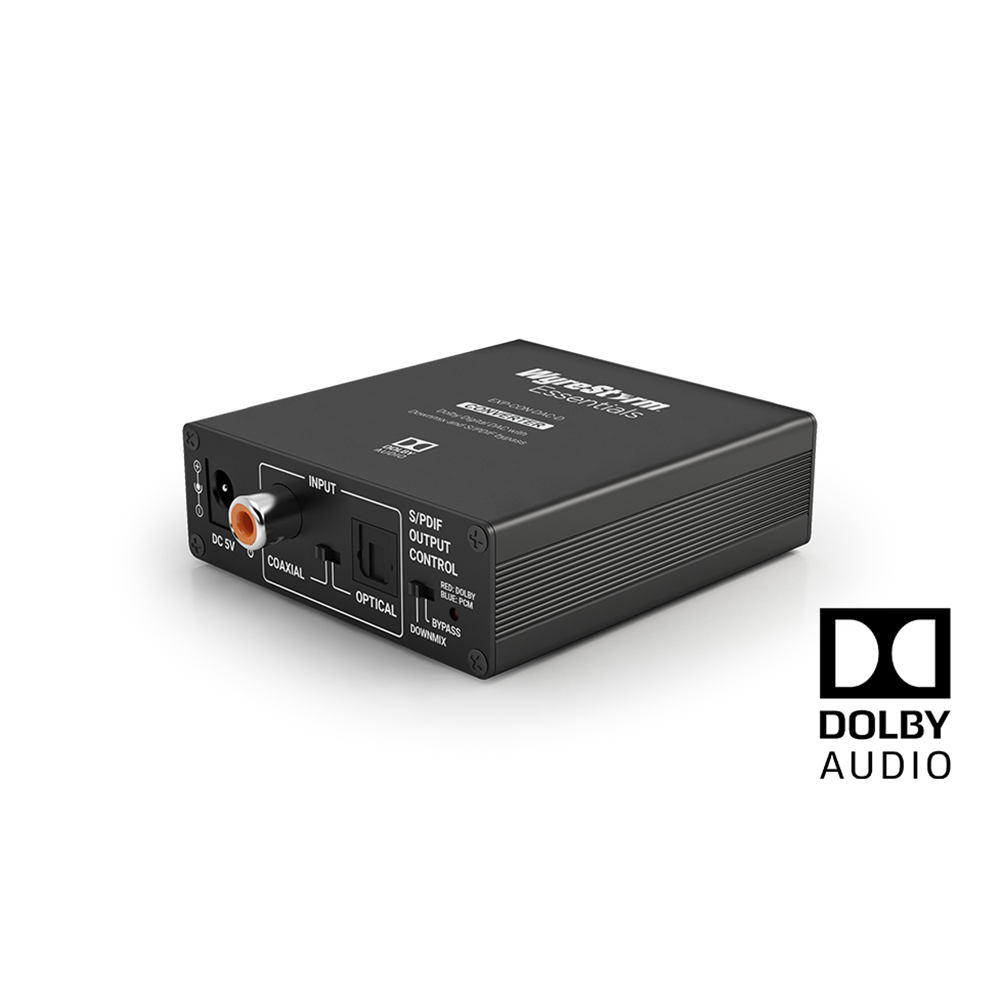

The EXP-CON-DAC-D has the option to convert a digital signal from either S/PDIF coaxial or TOSLINK inputs using a simple input selection switch. Using the output selection control the unit can furthermore then output the same signal to the S/PDIF outputs as a loop-through of the original signal or as downmixed PCM stereo which can then be fed into an S/PDIF input of an audio system, mirroring the analogue stereo output.

USB POWERED
With installation flexibility in mind, the EXP-CON-DAC-D can be powered using the included 5v DC power supply (with included regional pin adaptors) or use the USB power cable to power the DAC-D from a USB power or peripheral port on a third party device, potentially saving a mains outlet.


Features

  • Converts S/PDIF digital audio signals to analogue stereo
  • Supports up to 6 channels of audio encoded as Dolby Digital 5.1
  • Supports I/O conversion of Toslink-Coaxial or Coaxial-Toslink
  • Auto selection of 32, 44.1 or 48 KHz sampling rates
  • Includes digital interpolation filter
  • Low-latency digital filtering
  • Accepts uncompressed PCM digital audio input signals
  • Optical (Toslink) and digital coaxial inputs with input select switch
  • Simultaneous analogue & S/PDIF output
  • Optical (Toslink) and digital coaxial outputs
  • Digital output control switch for S/PDIF bypass or downmix
  • LED Power indication
  • Powered by 5v (Mains PSU and USB power cable included)
  • Can be powered by 3rd party USB device ports (min. 500mA supply)
  • Compact aluminium chassis
  • Manufactured under license from Dolby Laboratories

Specifications

AUDIO AND VIDEO
  • Inputs:    1x Coaxial In: S/PDIF Coaxial Digital | 1x Optical In: TOSLINK (Digital Optical)

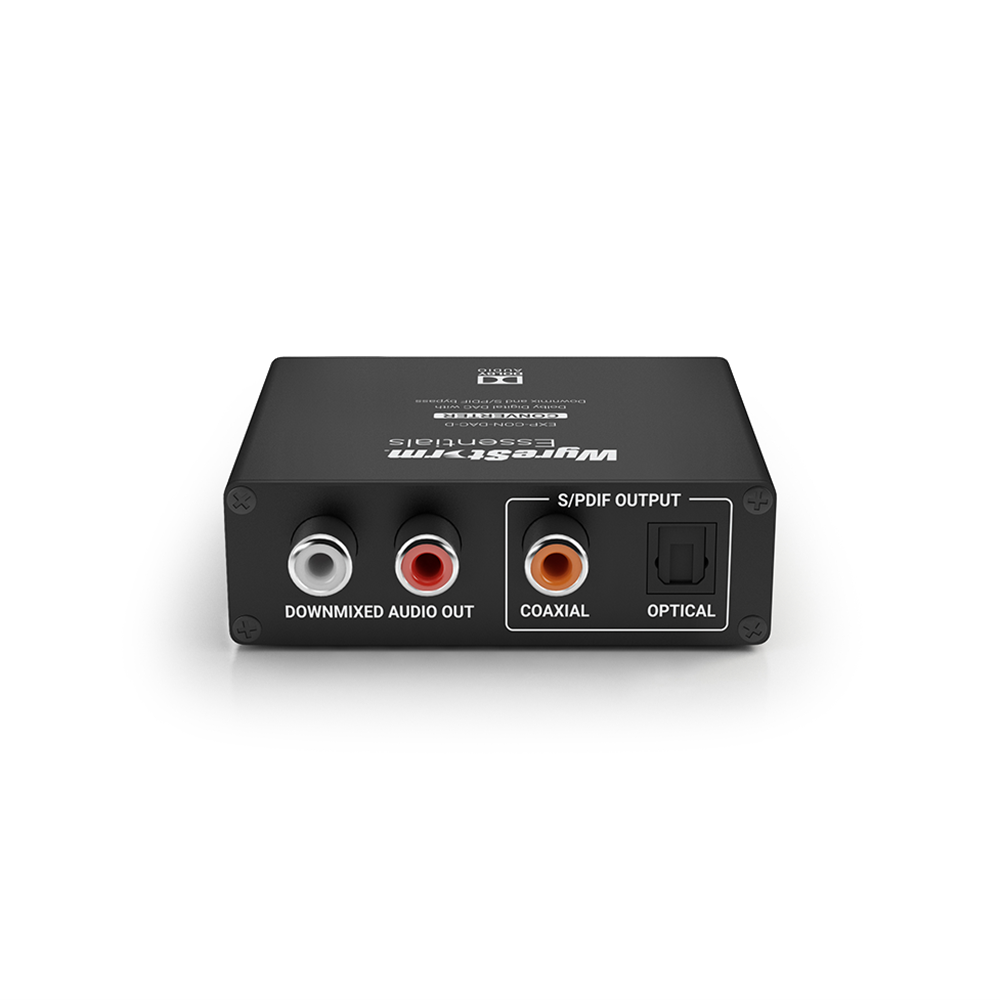

  • Outputs:    1x L/R Audio: RCA Stereo | 1x Coaxial: S/PDIF Digital Coaxial | 1x Optical: TOSLINK Digital Optical
  • Audio Formats:    2ch PCM (24bit/96kHz max) | Dolby Digital 5.1
  • Output Impedance:    552Ω
  • Output Voltage:    2.0V RMS @ Max Input (0dBFS)
  • Frequency Response:    20Hz~20kHz <+/-0.5dB
  • Signal to Noise Ratio:    > 93dB (20Hz~ 20kHz)
  • THD + Noise (floor):    0.006%~0.042% (1kHz at 2V RMS)
POWER
  • Power Supply:    5V DC 1A
  • Max Power Consumption:    0.475W
ENVIRONMENTAL
  • Operating Temperature:    32°F ~ 113°F (0°C ~ 45°C)10% ~ 90%, non-condensing
  • StorageTemperature:    -4°F to ~ 158°F (-20°C ~ +70°C)10% ~ 90%, non-condensing
  • Maximum BTU:    1.6 BTU/hr
DIMENSIONS & WEIGHT
  • Rack Units/Wall Box:    <1U
  • Height:    24mm/0.94in
  • Width:    80mm/3.15in
  • Depth:    76mm/2.99in
  • Weight:    107g
REGULATORY
  • Safety and Emission:    CE | FCC | RoHS
ACCESSORIES
  • What’s included:
    • 1 x WyreStorm EXP-CON-DAC-D Analog audio converter
    • 1 x Universal 5V DC/1A power supply

Product Documents

No documents available
