  • Airplate S2 Slot Cooler BLK 1 x 120mm fan 991LPM @17dBA AC Infinity

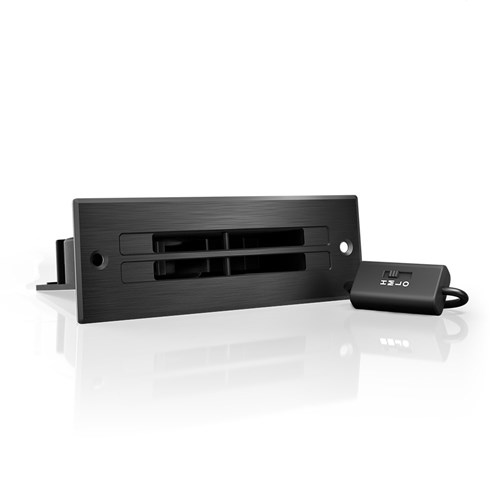

Airplate S2 Slot Cooler BLK 1 x 120mm fan 991LPM @17dBA AC Infinity

Product Code: AI-APS2

Brand
AC Infinity
$99.00 inc GST
RRP $99.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



1 Year
Technical Specifications
Brands AC Infinity
Cooler type Cabinet
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

AIRPLATE S2 6" Unit, Single Blower /w Speed Control - BLK

Product Features

  • An ultra-quiet blower system designed for cooling cabinets that requires minimal noise.
  • Low-profile aluminium frame is ideal where mounting space is limited or a smaller footprint is desired.
  • Features a multi-speed controller to set the fan’s speed to optimal noise and airflow levels.
  • Powered by USB Port
  • Optionally powered by AC wall adapter (sold separately)
  • Dimensions: 5.8 x 2.0 x 4.7 in | Airflow: 35 CFM | Noise: 17 dBA

Product Description

The ultra-quiet blower system is designed to cool home theaters, entertainment centers, and audio video cabinets. The unit's low-profile design is ideal where mounting space is limited or a smaller footprint is desired. Features a speed controller and 6 foot power cord. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE, UL, TUV, and RoHS. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC-machined anodized aluminum frame with a modern brushed black finish. Blowers are set to exhaust air out of the enclosure. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through an USB port or standard wall outlet.



Speed Controller and Boost Adapter

The in-line multi-speed controller with power switch allows setting the blower’s speed to optimal noise and airflow levels for various environments. The optional AC wall Adapter increases its performance by up to 25%



Connecting Additional Units

For cabinets that requires more airflow, each unit can be connected to additional AIRPLATE S and T series cabinet fans. Up to four fans can share the same USB power source; and up to six fans can share the same thermal controller or wall outlet power source. AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. All setups with more than four daisy-chained fans must have their inline speed controller set to high to prevent overload, e.g. two AIRPLATE S9 units daisy-chained together.



Applications

This ultra-quiet cooling system is popular in a variety of applications including home theaters, entertainment centers, and audio video cabinets; and smaller enclosures and racks holding computers, receivers, amplifiers, and other AV equipment.



Technical Data


Product Identification

  • Manufacturer AC Infinity Inc.
  • Product Name AIRPLATE S2
  • Product Model AI-APS2
  • UPC Code 854759004723

Product and Mounting Dimensions - Fan Unit

  • Total Dimensions 5.9 x 2.0 x 4.8 in (15 x 5.1 x 12.2 cm)
  • Backside Enclosure Dimensions 4.72 x 0.98 in (12.0 x 2.5 cm)
  • Required Mounting Hole 4.75 x 1.25 in (12.1 x 3.18 cm)
  • Hole to Hole Distance 5.12 in (13 cm)
  • Screw Hole Size Ø 0.197 in (Ø 0.5 cm)
  • Cord Length 72 in (6 feet)

Product Performance and Technical Specs

  • Total Airflow 35 CFM
  • Total Noise 17 dBA
  • Static Pressure 0.84 mm-H2O
  • Operating Voltage 3 to 7V DC
  • Power 1.05 W
  • Current 0.2 A
  • Wall Adapter Input 100 to 240V AC
  • Operating Humidity 35 to 85% RH
  • Operating Temperature 14 to 230°F
  • Fan Bearings Dual Ball
  • L10 Life Expectency 67,000 Hours
  • Fan Quality Approvals UL, CE, TUV, RoHS
