800I Series IP Pwr Conditioner 6 Controller Outlets Wattbox

Product Code: WB-800I-IPVM-6

Brand
Wattbox
$1,099.00 inc GST
RRP $1,099.00

Limited Stock
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



1 Year
False False
Technical Specifications
Brands WattBox
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

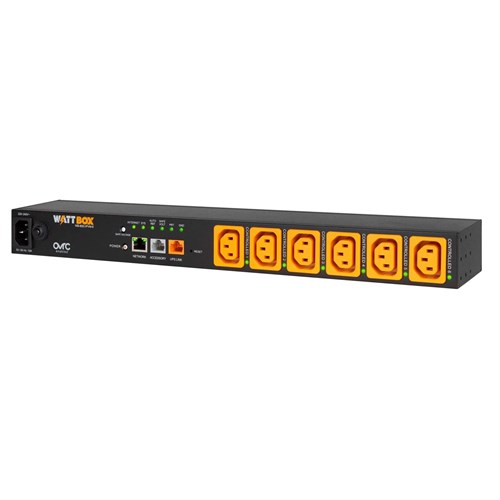

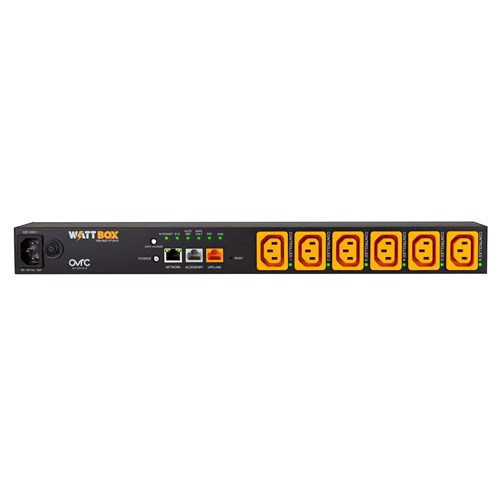

WattBox® 800 Series IP Power Conditioner

6 Individually Controlled & Metered Outlets

Get all of the benefits of the 12 and 18-outlet 800-Series WattBox models in our most versatile form factor to date. The 6-outlet WattBox® 800-Series IP Power Conditioner fits horizontally or vertically in a small rack, in a media cabinet, under a conference table, or anywhere else you can fit it. The ability to monitor the current and voltage at each outlet in real-time offers the ultimate in troubleshooting and control to cut down on service calls, saving you time and money. All of our IP WattBox products provide three lines of defense – Self-Healing Auto Reboot, OvrC Client-Facing App, and OvrC Remote management – to fix problems quickly and often before your clients even know there’s an issue. Add in robust surge protection and compatibility with leading control systems, and you have a power conditioner built for every job in the queue.


The Most Versatile IP WattBox

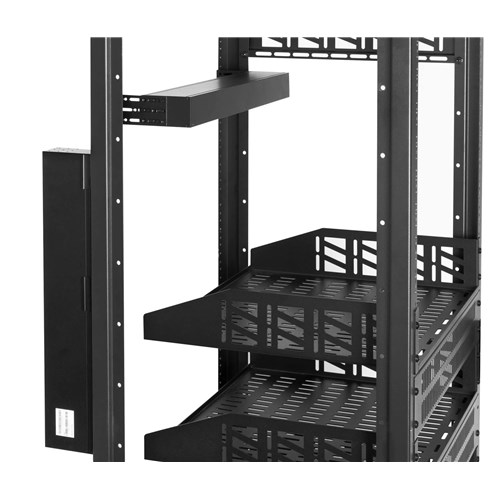

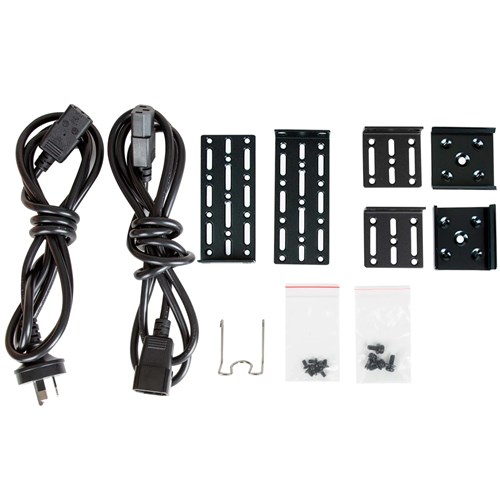

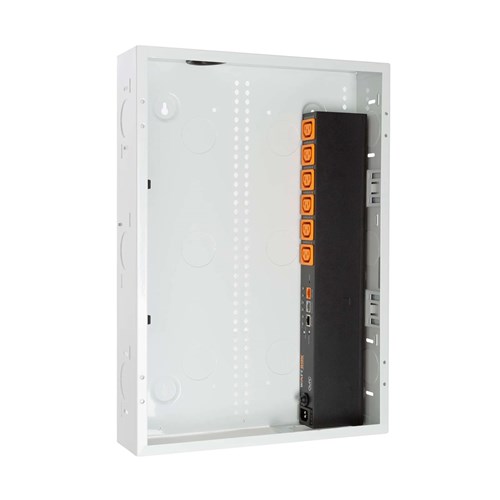

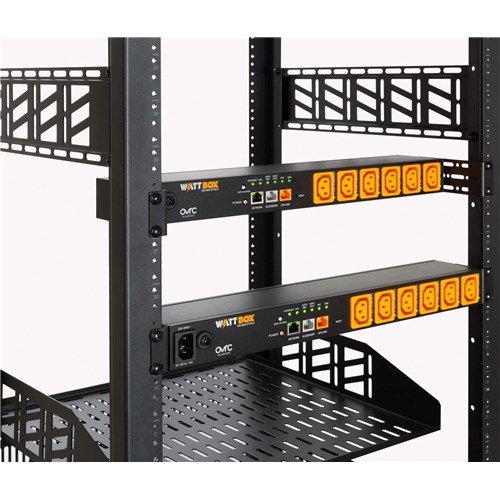

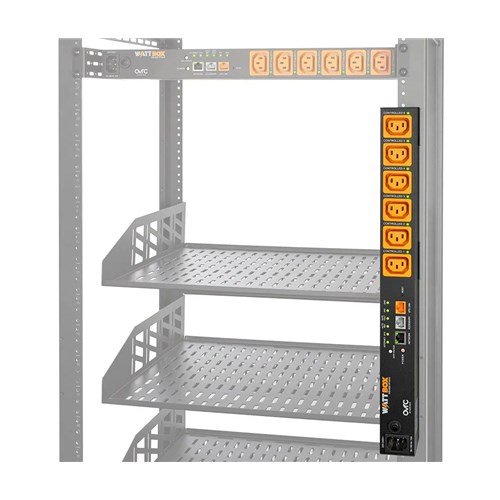

The 800-Series 6-outlet WattBox is packed with the same features as its larger 12 and 18-outlet siblings and is designed to address two key challenges integrators face during power installs. First, its 6-outlet size (17" width and 10U height) is ideal for small racks, media cabinets, in-wall boxes, or under conference tables. Secondly, this WattBox is easily configured to meet any performance and aesthetic preference. You can even put two 800-Series Power Conditioners in the back of the rack, placing one vertically and one horizontally. Two included rack ears and mounting clips allow for flush and deep-inset mounting or vertical mounting on a rack or wall to further optimize limited space. Additionally, WattBox offers a family of IEC and extension cords in a variety of lengths, featuring a 360° rotating angle right end.

Ultimate in Troubleshooting & Control
WattBox is synonymous with individual outlet control; however, the 800-Series goes above and beyond, letting you monitor the current and voltage in real-time at each outlet for more advanced troubleshooting. Has your weekend ever been interrupted by a service call when the only problem was an unplugged or turned off device? With individual outlet metering, you can solve simple issues like these remotely and further strengthen WattBox’s three lines of defense: Self-Healing Auto Reboot, OvrC Client-Facing App, and OvrC Remote Management, to reduce or even eliminate service calls.

Surge Protection & Power Conditioning
This professional-grade WattBox is engineered to protect critical equipment on the job. Safe Voltage protects gear by automatically disconnecting it during unsafe voltage conditions, while plastic-encased MOVs with UL94 V-0 rating provides critical surge protection.

Optional UPS Battery Pack Add-On
WattBox offers a unique two-part UPS that allows you to build the perfect combination of power conditioner and UPS to fit any install. Pairing an IP WattBox with a WattBox OvrC UPS Battery Pack safely backs up all of your equipment in case of power failure. This add-on keeps the most critical systems up and running during power outages and brownouts and lets you manage your system proactively by unlocking additional OvrC features including smart load shedding, remote alarm silencing, and critical battery health alerts.

Control System Integration & IP WattBox API
WattBox is compatible with the industry’s most popular control systems, including Control4, Crestron, Elan, RTI, and URC. We’ve even added a next-generation Telnet API that lets you program unique features into your system or create custom solutions to deploy and monitor WattBox products across thousands of sites. With Telnet API, you can integrate with any third-party control system, monitoring platform, or other proprietary solutions.


Three Ways to Prevent Service Calls
This WattBox provides three lines of defense to fix problems and reduce service calls. Combine WattBox’s scheduling and auto-reboot feature with OvrC remote management and a client-facing mobile app, and you have an iron-clad solution built for pros. Simply put, no other remote management system comes close to what WattBox and OvrC can do.

Self-Healing Auto Reboot
WattBox power conditioners are uniquely designed to fix themselves without any outside intervention, helping to prevent service calls and dealer troubleshooting. The unit continuously monitors connectivity and when the connection is lost, it automatically reboots the troubled device as programmed. You can even schedule regular reboots through the local UI or OvrC platform.


Client-Facing App
OvrC Home is a free client-facing mobile app included with all WattBox IP products that allows your customer to fix small problems on their own. Through this intuitive app, they’ll be able to reset any device connected to individual WattBox outlets and use macros to execute a series of commands that you define. If for some reason customers still need to reach you, your company logo and contact information are easily accessible within the app.


OvrC Remote Management

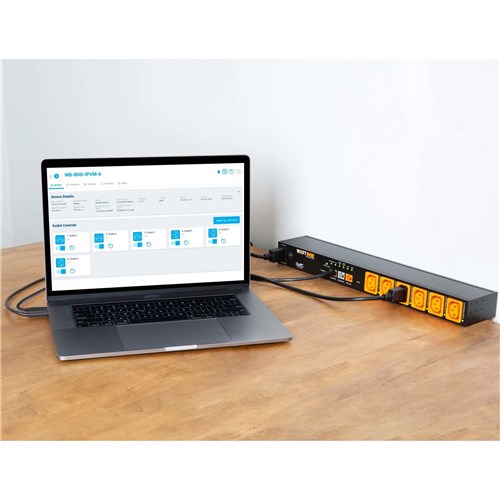

Through an easy-to-use desktop or mobile app, you can reboot devices, modify configurations, update firmware and more – all from anywhere in the world. Plus, if a WattBox falls offline, OvrC provides you with a detailed notification so you can address the issue before your customer even notices. Upgrade to OvrC Pro, and you’ll get access to even greater diagnostics and troubleshooting tools across all OvrC-enabled products.

EMI/RF Filtration
Filtered Oulets per Bank: n/a
Filtration (per bank): -10dB @ 10kHz, -22db @ 100kHz, -71dB @ 1MHz
Outlets
Type: NEMA 5-15
Number of Outlets: 6
Peak Impulse Current
45,000A
Safe Voltage
Yes (90V ~ 136V)
Certifications
UL 62368-1, UL 1449 (are the only two UL that apply to this model), FCC 47 CFR Part 15 Subpart B
Dimensions (W x H x D)
17" x 2.17" x 1.73"
Features
Protection Modes: L-N, L-G, N-G
Detachable Power Cord
Inputs
AC Input Connection: IEC C-14
Operating Temperature
14°F - 104°F
Power Cord Length
6 Ft.
Line Voltage
120V, 50/60 Hz
Ratings
Circuit Breaker Rating: 15A
UL Current Rating: 12A
UL Power Rating: 1440W
Voltage Protection Rating: L-N 600V, L-G 600V, N-G 600V
Joule Rating: 1080 Joules
Rack Spacing
Horizontal is 1U in height; Vertical is 10U tall.
Fuse Type
Thermal Fuse
IP Control
IP Controlled Outlets: 6
Telnet
API: Yes
Power Metering
Individual Outlets: Yes
Device: Yes
Surge Protection
Yes, MOV Type with AC Disconnect Thermal Fuse

Product Documents

No documents available
