6 X Pip Or 9 X Mv Nhd Decoder NHD250RX Wyrestorm

Product Code: WY-NHD250RX

Brand
Wyrestorm
RRP $2,999.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
False False
Technical Specifications
Brands WyreStorm
Input/output type HDMI
Product type AV over IP
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

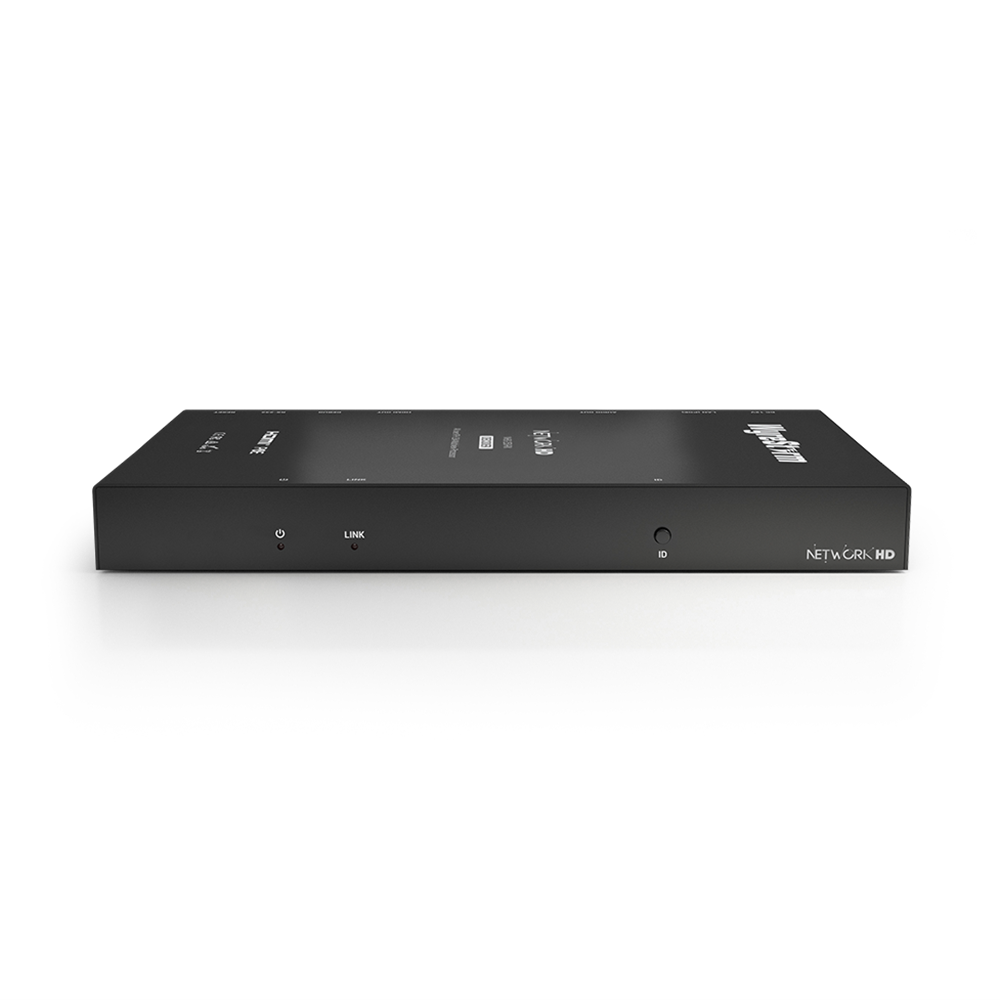

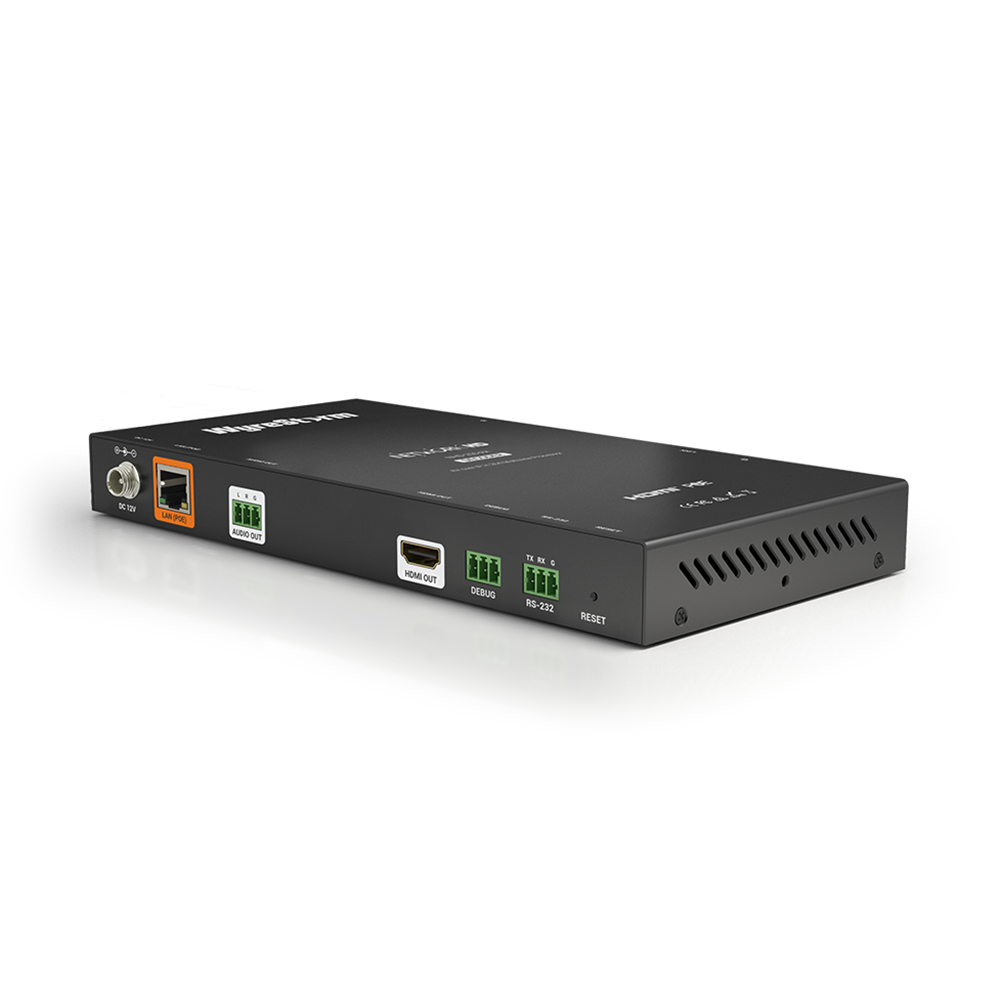

NetworkHD™ 200 Series AV over IP H.264 MultiView Processor

NHD-250-RX
The NHD-250-RX is an enhanced MultiView display decoder compatible with the NetworkHD 100 and 200 Series, an ultra low bandwidth H.264 AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network.

The NHD-250-RX H.264 decoder is intended for use with 100 or 200 Series H.264 encoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-000-CTL system controller complete control integration is simple.

4K OUTPUT
NetworkHD™ multiview decoders are the only NetworkHD 100/200 series product with a 4K output - capable of scaling a single 2K source to full 4K resolution or displaying multiple source images with no or minimal scaling on a 4K display.

MULTIVIEW MONITORING
The NHD-250-RX multiview processor is capable of displaying up to nine simultaneous video feeds on a single 4K display or 6 feeds in overlay mode on a 2K display, with users able to select between hybrid grid or PiP layouts among other configurations.

SERIAL AND HDMI DEVICE CONTROL
In addition to HDMI streaming over an IP Network, the 100/200 Series sends RS-232 control signals to a source or display and CEC control commands to a display device for single control signal deployment without the need for additional equipment.

NETWORKHD TOUCH CONTROL
A revolution in AV control, WyreStorm’s award-winning NetworkHD Touch™ App for iPad puts the entire NetworkHD system at your fingertips. See what you’re switching with live video source and display previews and instant drag and drop content selection.


  • MultiView capable of displaying 1 to 9 simultaneous NetworkHD 2K encoder streams on a single 4K display
  • Up to 6 simultaneous NetworkHD 2K encoder streams on a single 2K display in overlay mode
  • Ideal for commercial monitoring of remote displays within a venue from a central location to quickly verify content transmitted to screens
  • Multiple configurable layouts including hybrid grid layouts, PiP, PaP, arbitrary layouts and preset multiscreen arrangements
  • Graphic or logo can be inserted into central image placeholder for screen indication or additional branding
  • Configurable resolution output scaling, timing and mode
  • Instant switching with WyreStorm QuickSync™
  • RS-232 with integration with leading 3rd party control systems, including the NetworkHD Touch™ app
  • CEC control of connected displays
  • Analog audio breakout
  • Configurable source audio switching
  • Multiple NHD-250-RX units can be combined to suit the monitoring needs of the project
  • Dramatically reduces the number of components required to monitor a venue – less decoders and screens – for reduced project complexity and less potential points of failure within installations
  • Also provides video wall-like functionality on large screens or multiple screens combined with different layouts for custom display configurations
  • Backwards compatible – able to be added to any existing NetworkHD 100/200 Series system
  • IEEE 802.3af PoE compliant PD
  • Includes DC power adapter and mounting bracket
  • Compatible with NHD-000-RACK4 rack mounting kit


SPECIFICATIONS

  • Audio and Video

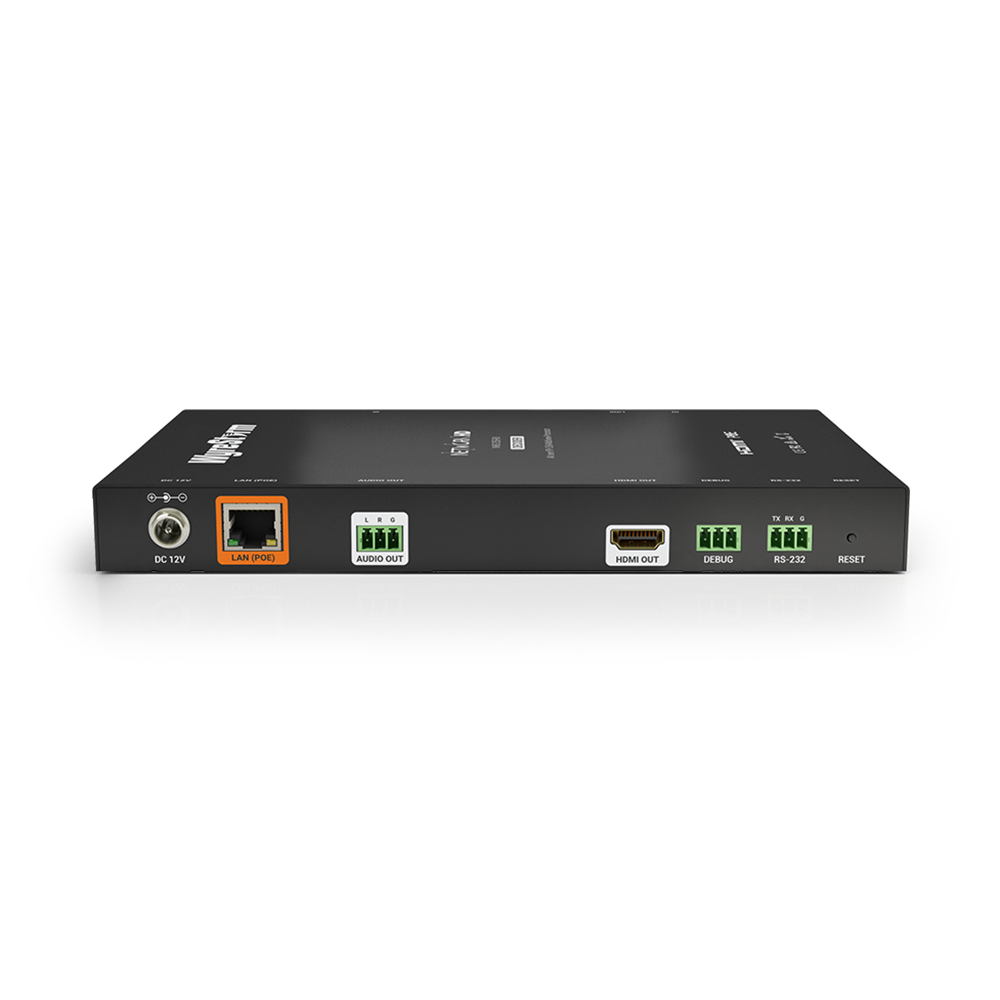

  • Inputs: 1x 8-pin RJ-45 (Transmission from TX)
  • Outputs:
    • 1x HDMI Out: 19-pin HDMI Type A
    • 1x Audio Out: 3-pin Terminal Block (3.5mm)
  • Audio Formats: 2ch LPCM 48KHz
  • Input Video Decoding: H.264
  • Decoding Data Rate: Max: 30Mb/s per stream
  • End to End Latency (Max): ~80ms (low latency mode) | ~300ms (high quality mode)
  • Video Resolutions (Max) Note: All resolutions listed are 8bit RGB or 4:4:4 8bit:
    • 3840x2160p @24/30/60Hz (Tile mode only)
    • 1920x1080p @24/25/30/50/60Hz
    • 1280x720p @30/50/60Hz
    • 720x576p @50Hz
    • 720x480p @60Hz
    • 60fps Progressive: 640x480 | 800x600 | 1024x768 | 12
    • 80x800 | 1280x1024 | 1360x768 | 1366x768 | 1400x1050 | 1440x900 | 1600x1200 | 1680x1050 | 1920x1200
  • 3D: NA
  • Maximum Pixel Clock: 594MHz
Communication and Control
  • HDMI: HDCP 1.4 | CEC
  • Ethernet: 1x LAN (PoE): 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE PD (IEEE 802.3af)
  • RS-232: 2x RS-232: 4-pin Terminal Block (3.5mm) | 2 Way
Power
  • Power Supply: 12V DC
  • PoE: IEEE 802.3af | (15.4W at PSE)
  • Max Power Consumption: 8.3W (with PSU)
Environmental
  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • StorageTemperature:
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum BTU: 31 BTU/hr
Dimensions & Weight
  • Rack Units/Wall Box: <1U flat on shelf | 6U in NHD-000-RACK4
  • Height: 25mm/1in
  • Width: 220mm/8.67in
  • Depth: 130mm/5.12in
  • Weight: 0.78kg/1.72lbs
Regulatory
  • Safety and Emission CE | FCC | RCM | RoHS
