  • 1KVA True Sine Wave UPS Double-Conversion online Rack/Tower Niveo Professional
This is a Special Order Item

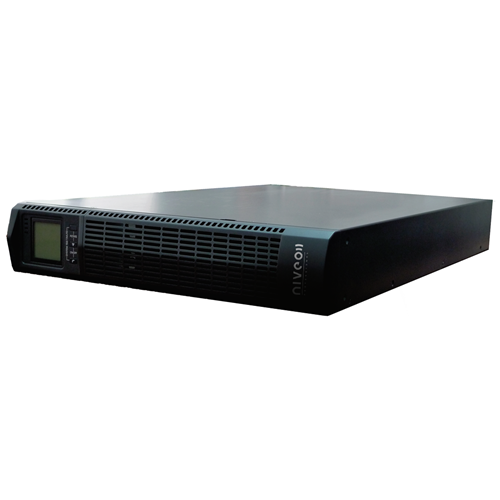

1KVA True Sine Wave UPS Double-Conversion online Rack/Tower Niveo Professional

Product Code: NP-NUPS23-1000U

Brand
Niveo Professional~
P.O.A.
RRP P.O.A.

Special Order Item
Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



2 Year
True False
Technical Specifications
Brands Niveo Professional
Product type UPS Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

NUPS23-1000U


Niveo Professional True Sine Wave Double-Conversion Online Rack/Tower UPS, 3KVA

Introduction
Ranging from 1KVA to 3KVA, NUPS23 provides server-grade full power protection from power failure, spikes and surge in small footprint with 3-level charging method and enhanced output power factor 0.9. Combining flexible rack/tower form factor and easy-shift LCD panel design, this series is perfect for AV, networking, telecom, server and mission-critical applications. Optional battery packs to enhance run time.
  • Clean power output
  • No delay for batteries to kick in during black-outs
  • Remote manageable
  • Switchable outlets

Features
  • True Sine Wave double-conversion online
  • Output power factor 0.9
  • User-friendly and easy-shift LCD design
  • Rack/Tower design
  • ECO and advanced ECO mode for energy saving
  • Output voltage regulation < 1%
  • Higher output crest ratio 5:1
  • Programmable power management outlets
  • Emergency power off function (EPO)
  • Hot-swappable battery design
  • Multiple communication available

SPECIFICATIONS

  • Capacity (VA/W): 1000VA/900W
  • Phase: Single phase & Ground
  • Rated Voltage: 100/110/115/120/127VAC
  • Voltage Range: 55-145VAC
  • Frequency Range: 45Hz-65Hz(auto-detect)
  • Power Factor: ≥0.98

Input
  • Current THDi: <7% at 100% non-linear load
  • Bypass Voltage Range:
    • Max.voltage: +15%(optional +5%?+10%?+25% )
    • Min. voltage: -45% (optional - 20%?-30%)
    • Frequency protection range: ±10%
  • ECO Range: same as the bypass
  • Generator Input: Support
  • Phase: Single phase & Ground
  • Rated Voltage: 100/110/115/120/127VAC
  • Power Factor: 0.9
  • Voltage Regulation: ±2%
Output
  • Frequency
    • Utility Mode:50Hz or 60Hz(Synchronized to Mains)
    • Battery Mode: 50/60Hz±0.02Hz
  • Crest Factor: 5:1
  • THD:
    • ≤3% with linear load
    • ≤5% with non linear load
  • Waveform: Pure Sinewave
  • AC Mode(full load): up to 90%
Efficiency
  • Battery Mode(full load): >85%
  • ECO Mode(full load): >94%
  • Voltage: 24Vdc
  • Capacity(standard unit): 12V/9AH
  • Backup Time: Full load>=5 minutes; 50% load>=13 minutes
Battery
  • Recharge time to 90%: 5 hours
  • Charging Current: 1A
  • Battery Socket: Anderson like PowerPole Modular Connectors
Transfer Time
  • Utility to Battery : 0ms; Utility to bypass< 4ms
  • AC Mode: Load <100%~150%: 30S; Load > 150%: 300ms then shut down UPS completely
  • Overload
    • Bat. Mode: Load <100%~150%: 30S; Load > 150%: 300ms then shut down UPS completely
    • Bypass Mode Load > 130%: 60S then shut down output
  • Short Circuit Hold Whole System
  • Overheat: Line Mode: Switch to Bypass; Battery Mode: shut down UPS immediately
Protection
  • Battery Low: Alarm and Switch off
  • Self-diagnostics: Upon Power On and Software Control
  • EPO: Shut down UPS immediately
  • Battery: Advanced Battery Management
  • Noise Suppression: Complies with EN62040-2
Alarms
  • Audible & Visual: Line Failure, Battery Low, Overload, System Fault
  • Status LED & LCD: Load/Battery/Input/Output/Operating Mode Information
Display
  • Reading On the LCD: Load/Battery/Input/Output/Operating Mode Information
  • Dimension(WxHxD)mm: 440x86.5x430
  • Physical Weight (Kg): 15.1
  • External Battery Connection: Anderson like PowerPole Modular Connectors
  • Smart RS232/USB Port: Supports Windows Family, Linux, FreeDSB, etc.
Communication Interface
  • Communication Slot: SNMP Card (independent to RS232)
  • RJ45: Built-in Power Surge, Lightning Protection Device
  • Operating Temperature: 0°C~40°C
Environment
  • Storage Temperature Humidity:
    • -25°C~+55°C
    • 0~90% non condensing
  • Altitude: < 1500m.(derating while > 1500m)
  • Noise: <50dB(at 1 meter)
Safety Conformance
  • UL1778, CSA22.2
