Products

AV switching and distribution

Gio XLR

In-wall XLR module (GIOXLR) (XI-GIOXLR)

Brand
Xilica
RRP $1,749.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
GTIN
885799050661
2.000000
0
Gio XLR
/xlr-2x2--dante-inwall-module

CategoryCode SX0205
Input/output type XLR
Product Category AV switching and distribution
Specials Clearance Specials

table variant
  • SX0205
  • SX0205
  • SX0205
  • SX0205
  • SX0205
  • SX0205

N
XI-GIOXLR
CategoryCode - 1-1
XI-GIOXLR

Gio XLR

test BusinessObjects.ProductAttribute - attribute list
XILICA

here1
Features
  • Morbi in sem quis dui placerat ornare. Pellentesque odio nisi, euismod in, pharetra a, ultricies in, diam. Sed arcu. Cras consequat.
  • Praesent dapibus, neque id cursus faucibus, tortor neque egestas augue, eu vulputate magna eros eu erat. Aliquam erat volutpat. Nam dui mi, tincidunt quis, accumsan porttitor, facilisis luctus, metus.
  • Phasellus ultrices nulla quis nibh. Quisque a lectus. Donec consectetuer ligula vulputate sem tristique cursus. Nam nulla quam, gravida non, commodo a, sodales sit amet, nisi.
  • Pellentesque fermentum dolor. Aliquam quam lectus, facilisis auctor, ultrices ut, elementum vulputate, nunc.

here2
here3 True

. AttributeSet1.AttributePrompt1
0
7.0000
7.0000
XLR -productfeatures value
SX02,SX0205
BusinessObjects.ProductAttribute
$619.00-nett for one
2AMBWEBSAL BusinessObjects.Product BusinessObjects.ProductAttribute
Duedate

XLR 2x2 - Dante inwall module
False
Gio XLR is a dual-gang in-wall endpoint with a single cable installation for both power and data. It offers a 2×2 input/output combination using Neutrik-brand connectors, with mic/line switching and software-selected 48V Phantom power, making Gio XLR a versatile bridge between audio and IT - notes 2

619.00
1


- product attributes False
SX0205 - category code

Product
False
11/08/2021 2:00:19 PM - created
23/10/2025 1:29:34 PM - updated
31/08/2026 12:00:00 AM -pricedate
- seconary
True $1,590.00 - price for one ex
$1,749.00 - rrp formatted
$1,590.00 - RRP price from deafult ex
$1,590.00 - price from first ex
1136.85 - seed
619.00
/Images/ProductImages/Thumbnail/ /Images/ProductImages/Original/XI-GIOXLR.png
https://ambertechnologystage.commerce.vision/Images/ProductImages/Original/XI-GIOXLR.png
XI-GIOXLR
/Images/ProductImages/Original/XI-GIOXLR.png False
0 -attribute count
False
False
False - same code
False
False
False
<table border='1'><tr><td>Promotion</td></tr><tr><td>$619.00</td></tr></table> - promo ex gst
False

Special pricing until 31/12/2026 False - no level 0
<table border='1'><tr><td>Promotion</td></tr><tr><td>$619.00</td></tr></table>
Gio XLR is a dual-gang in-wall endpoint with a single cable installation for both power and data. It offers a 2×2 input/output combination using Neutrik-brand connectors, with mic/line switching and software-selected 48V Phantom power, making Gio XLR a versatile bridge between audio and IT

$1,749.00
31/08/2026
<table border='1'><tr><td>Promotion</td></tr><tr><td>$619.00</td></tr></table>; List
04 == "04" O
XI-GIOXLR
619.00 - int price
XI-GIOXLR GIOXLR
1 B guestuser2d2fc10a-3e17-461e-ba27-53d41d42e3d5 2AMBWEBSAL 885799050661 currentUser
Xilica

-role
Technical Specifications
Input/output type XLR
  • Details
  • Downloads
  • Where to Buy
  • Ordering

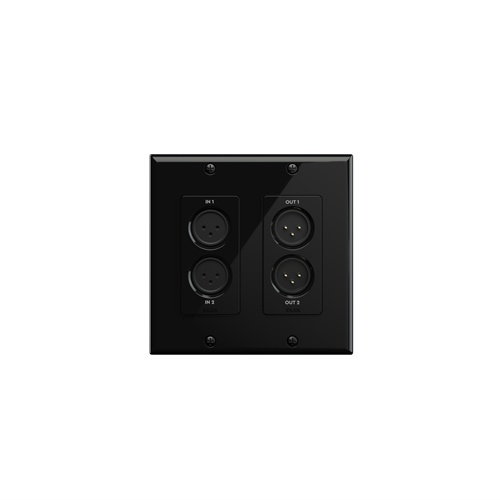

GIO XLR


True connection unlocks the power of possibilities. With Gio XLR, proprietary analog audio products can be connected into an installed network for centralized management, routing and control. Leveraging Dante audioover-IP technology, Gio XLR is a dual-gang in-wall endpoint with a single cable installation for both power and data. It offers a 2×2 input/output combination using Neutrik-brand connectors, with mic/line switching and software-selected 48V Phantom power, making Gio XLR a versatile bridge between audio and IT. Deploy Gio XLR in communal spaces to enable easy conversion for all-hands meetings, breakout rooms or portable PA events, or add to existing IT-based spaces such as university lecture theaters and ballrooms to enable their multipurpose use. Gio XLR's easy-to-install form factor enables mounting in single-gang EU/UK electrical boxes or dualgang US junction boxes, and is configured through Xilica Designer for a simple, intuitive installation experience.


BENEFITS

  • Enable multipurpose use of breakout rooms, cafeterias and communal spaces in corporate buildings, such as for all-hands meetings or company presentations, by extending the installed AV-overIP system with portable analog products, such as microphones and powered loudspeakers.
  • Standardize event spaces in education, such as lecture theaters and halls, onto the site-wide IP network by locating Gio XLR at easy connection points - so you can benefit from your installed sound reinforcement system while supporting additional microphones, rental equipment and instruments.
  • Easy to deploy, simple mounting and a single CatX cable for both audio and power.

ENGINEERING SPECIFICATIONS
The device shall be provide two analog audio inputs and two analog audio outputs, both connected through Neutrik XLR3 sockets. The inputs and outputs shall be capable of sending/receiving both line level and microphone signals, selectable through software. The device shall utilize Power-over-Ethernet to IEEE 802.3af Class 0 standard, and support Dante audio networking for signal transport across a standard Ethernet network using CatX cable. The device shall be mountable in a standard US dual-gang junction box or single-gang EU/UK electrical box. It shall provide softwareconfigurable 48V Phantom power to support modern condenser microphones, and allow customized audio gain. The device shall provide a single RGB LED for status indication and a tactile button for network discovery and factory reset, and shall maintain compliance with CE and FCC Class 15 B regulatory requirements. The device shall be Xilica Gio XLR.

TECHNICAL SPECIFICATIONS

Electrical
  • Power Consumption: 5W maximum
  • Phantom Power: Yes; 48V, up-to 75mA maximum
  • Power-over-Ethernet: IEEE 802.3af, Class 0
  • Ambient Operating Temperature: 32-104oF (0-40oC)
  • Networking (Audio): Dante™ with AES67 compliance
  • Input Type(s): Mic; Line. Software-selectable
  • Output Type(s): Mic; Line. Software-selectable
  • Audio Gain:
    • Input: Up-to +45dB in 5dB steps, adjustable per input
    • Output: odB to -60dB, 1dB increments; adjustable per output
  • Sampling Rate(s): 44.1 kHz, 48kHz
  • Humidity: 0–98%, non-condensing
  • Altitude: 0-6,600 feet (0–2000 Meters) MSL
Mechanical
  • Connector(s): 2 x Neutrik XLR3M, 2 x Neutrik XLR3F, 1 x RJ45 with Link and Speed indicators
  • Indicator(s):
    • LED indicator for Power and Status;
    • Momentary button for network discovery and factory reset
  • Weight: 0.4lbs; 0.2kg
  • Dimensions:
    • Height: 4.2" / 107mm
    • Width: 3.5" / 89mm
    • Depth: 2.0" / 51mm
  • Mounting: Single-gang EU/UK electrical box or dual-gang US junction box; in-wall
General
  • Compliance: CE, FCC Part 15B, RoHS, WEEE
  • Warranty: Xilica Three Year Limited Warranty
  • Part Number(s): 2200-003-0402
