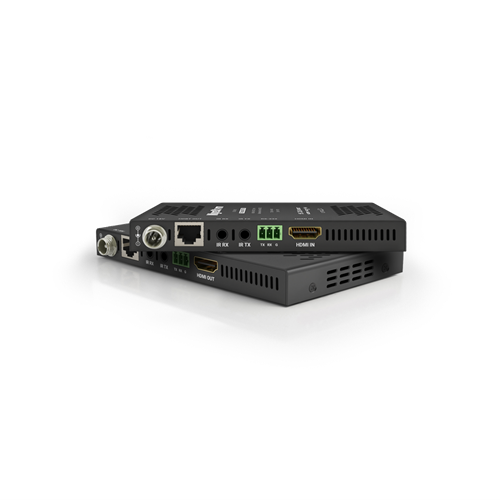

18Gbps 4K HDR HDBaseT™ Extender with HDCP 2.2 and 2-way PoH (4K: 35m/115ft | 1080p: 70m/230ft)

EX-35-H2

For extension of 4K UHD and HDR transmissions over medium distances in residential or commercial applications, the EX-35-H2 features WyreStorm's dynamic compression and HDBaseT technology to deliver visually lossless, latency-free 4K/60 4:4:4 or HDR content, along with bidirectional control and 2-way PoH up to 35m/115ft or 1080p to 70m/230ft.

HDMI2.0 MAXED OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it’s ready for the next shift in content technology: 60Hz HDR and 4:4:4 60Hz.

HDCP 2.2 COMPLIANT
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-35-H2 supports the multi-point distribution of this content over HDBaseT™.

SIGNAL RE-CLOCKING
Installers shouldn’t experience problems because of source equipment they have no control over. That’s why all extenders in the WyreStorm H2 family automatically “re-clock” the source signal, overcoming clock-stretching issues found in certain source devices.

FLEXIBLE INSTALL OPTIONS WITH 2-WAY POH
No 2 installs are the same; that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet.


FEATURES

  • Dynamic visually lossless compression enables extension of up to 4K/60 4:4:4 or HDR 60Hz content over HDBaseT
  • HDBaseT Class B transmission of 4K up to 35m/115ft and 1080p up to 70m/230ft
  • Compatible with the latest HDR standards, including HDR-10+, HLG content, with support for Dolby Vision™ up to 30Hz
  • Supports all VESA resolutions within the HDMI 2.0 specification
  • Advanced re-clocking chipset increases compatibility with new 4K UHD source devices
  • Bidirectional IR and RS-232 pass-through
  • Supports CEC communication between devices*
  • Slimline 21mm/0.83in chassis for easier, more convenient installation behind displays
  • 2-way PoH (Power over HDBaseT) enabling either transmitter or receiver to be remotely powered by the other unit
  • Supports 2ch PCM and 7.1 multichannel audio up to DTS:X and Dolby Atmos
  • HDCP 2.2 compliant
  • Automatic EDID Management
  • Threaded bushings allow use of both standard and locking DC power plugs

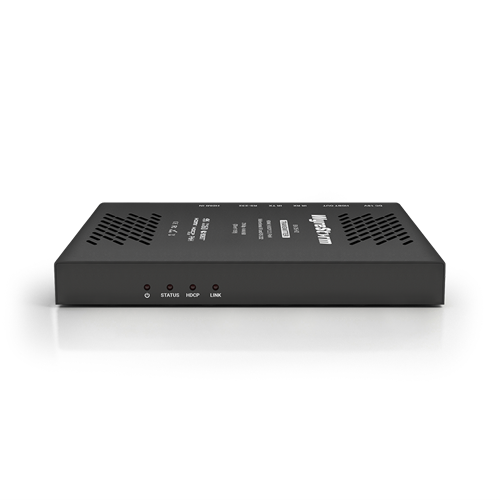

  • Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and HDBaseT link between devices
  • Automatically adjusts equalization and amplification of signal for easy installation
  • Energy efficient universal power supply included

*While this product supports CEC, WyreStorm cannot guarantee compatibility with all forms of CEC communication


SPECIFICATIONS

Audio and Video

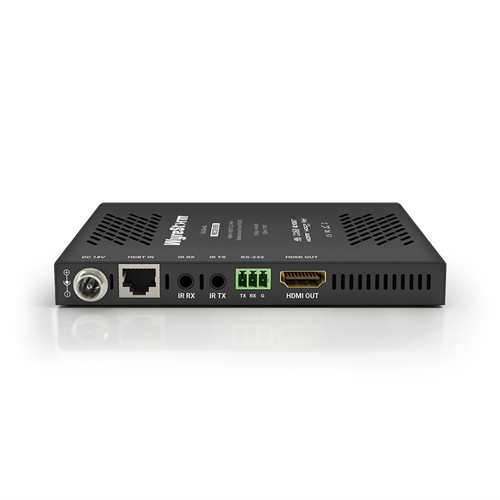

  • Inputs
    • (Transmitter) 1x HDMI 19-pin type A
    • (Receiver) 1x HDBaseT™ 8-pin RJ-45 female
  • Outputs
    • (Transmitter) 1x HDBaseT™ 8-pin RJ-45 female
    • (Receiver) 1x HDMI 19-pin type A
  • Output Video Encoding: HDBaseT™ Class B
  • Encoding Data Rate: 9.2Gbps
  • End to End Latency Formats: 10μs (micro seconds)
  • Audio Formats: 2ch Analog/PCM | Multichannel: LPCM Up to DTS-X and Dolby Atmos
  • Video Resolutions (Max)Video ResolutionsHDMI
    v1/2
    Cat6
    v1
    v2Cat6a/7
    v1
    v2
    1920x1080p @60Hz 12bit15m/49ft70m/230ft70m/230ft70m/230ft70m/230ft
    1920x1080p @60Hz 16bit7m/23ft70m/230ft70m/230ft70m/230ft70m/230ft
    3840x2160p @24Hz 10bit 4:2:0 HDR3m/10ft35m/115ft35m/115ft35m/115ft35m/115ft
    3840x2160p @30Hz 8bit 4:4:47m/23ft35m/115ft35m/115ft35m/115ft35m/115ft
    3840x2160p @60Hz 10bit 4:2:0 HDR3m/10ftNA35m/115ftNA35m/115ft
    4096x2160p @60Hz 8bit 4:2:07m/23ft35m/115ft35m/115ft35m/115ft35m/115ft
    4096x2160p @60Hz 8bit 4:4:47m/23ftNA35m/115ftNA35m/115ft
  • Supported Standards: DCI | RGB | HDR | HDR10 | Dolby Vision up to 30Hz | HLG | BT.2020 | BT 2100
  • Maximum Pixel Clock: HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
  • HDMI: HDMI 2.0 | HDCP 2.2 | EDID | CEC Pass-through | DVI/D supported with adapter (not included)
  • HDBaseT™: HDMI 2.0 | HDCP 2.2 | EDID | 2-way PoH | Bidirectional IR and RS-232
  • IR:
    • 1x IR TX 3.5mm (1/8in) Mono | Bidirectional over HDBaseT™
    • 1x IR RX 3.5mm (1/8in) Stereo | Bidirectional over HDBaseT™
  • RS-232: 1x 3-pin Screw Down Phoenix Connector | Bidirectional over HDBaseT™
Power
  • Power Supply: 18V DC 1A
  • Max Power Consumption: 8.88W
  • PoH: 48V 15.4W
Environmental
  • Operating Temperature:
    • 32°F ~ 113°F (0°C ~ 45°C)
    • 10% ~ 90%, non-condensing
  • StorageTemperature:
    • -4°F to ~ 158°F (-20°C ~ +70°C)
    • 10% ~ 90%, non-condensing
  • Maximum BTU: 30.30 BTU/hr
Dimensions & Weight
  • Version 1Version 2
    Rack Units<1U<1U
    Height17mm/0.67in15.2mm/0.6in
    Width140mm/5.52in136.4mm/5.38in
    Depth90.2mm/3.56in74.2mm/2.93in
    Weight0.36kg/0.79lbs0.22kg/0.48lbs
Regulatory
  • Safety and Emission: CE | FCC | RoHS | RCM
