Small Area Infrared System 2 IRSY2 Williams AV

Product Code: WI-IRSY2

Brand
Williams AV
RRP $3,049.00


Quantity In Cart:
Unit of Measure
EACH



Refurbished Products In Stock
Warehouse
Availability
Price
Qty
Order
No refurbished products
5 Year
False False
Technical Specifications
Brands Williams AV
Product type IR Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

IR SY2SMALL AREA INFRARED SYSTEM 2

Induction loop system

Small-area infrared system ideal for use as a small-area assistive listening system or for private TV listening in small conference rooms, hospital rooms, assisted living facilities, medical treatment centers and/or jury deliberation rooms. High-efficiency LEDs display power status and audio input. Power with A/C power supply or standard USB port on a TV. Plug-and-play install with 3.5MM audio input. One- or two-channel operation (2.3 and 2.8 MHz). Provides coverage area of up to 1300 square feet.

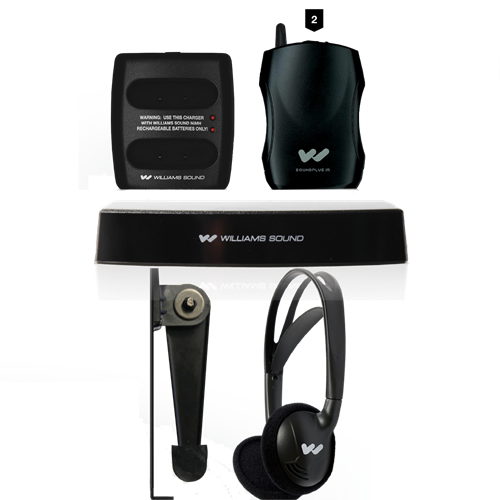

System includes

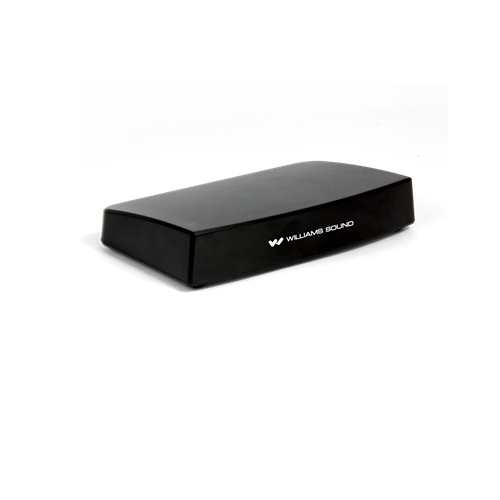

  • (1) IR T1 small-area infrared transmitter
  • (1) TFP 055 power supply
  • (1) WCA 106 USB micro cable, 6 ft. (USB 2.0 to USB micro)
  • (1) WCA 124 adapter cable (3.5mm F to RCA)
  • (2) WIR RX22-4N infrared receivers
  • (1) STD 008 flat-panel TV mounting bracket
  • (2) HED 027 heavy-duty, folding, mono headphones
  • (1) NKL 001 Neckloop
  • (1) CHG 3502 two-bay body-pack charger
  • (2) BAT 026-2 AA NiMH batteries

Features

  • High-efficiency LEDs display power status and audio input
  • Power with A/C power supply or standard USB port on a TV
  • Plug-and-play install with 3.5MM audio input
  • One- or two-channel operation (2.3 and 2.8 MHz)
  • Provides coverage area of up to 1300 square feet

Specifications

bat 026-2
  • NiMH, 1.2 Volt, 1500 mAh

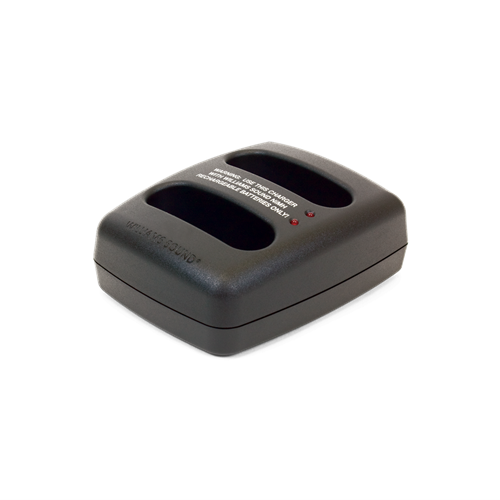

chg 3502
  • Dimensions: 4-7/8"L x 3-7/8""W x 2"H (12.4 cm L x 9.8 cm W x 5.1 cm)
  • Shipping Weight: 1.1 lbs (0.5 kg)
  • Enclosure: Black, ABS plastic
  • Charger Power:
    • Input: 6 VDC, 300mA, Center Positive.
    • Output: 100mA per bay.
  • Power Supply:
    • Williams Sound TFP 041 (US) or TFP 030 (International).
    • Input: 100-240 VAC, 50-60Hz, 0.5-0.3 A
    • Output: 6 VDC, 1.5 A.
  • Charging Time: 16 hours nominal *
  • Unit Capacity: 2 Units
  • Indicators: 2 Red LEDs - one for each bay. LEDs are lit when charging.
  • Warranty: 90 days
  • Approvals: CE, FCC, RoHS

hed 027
  • Style: Heavy-duty, folding, mono headphones
  • Plug: 3.5mm mono
  • Cord: 39"
  • Driver Size: 40 mm
  • Nominal Impedance: 16Ω
  • Freq. Response: 20 - 20kHz
  • Weight: 102g
  • Max Power Input: 100 mW
  • Sensitivity: 96 dB @ 1kHz
  • Replacement Pads: EAR 035 (one pair)

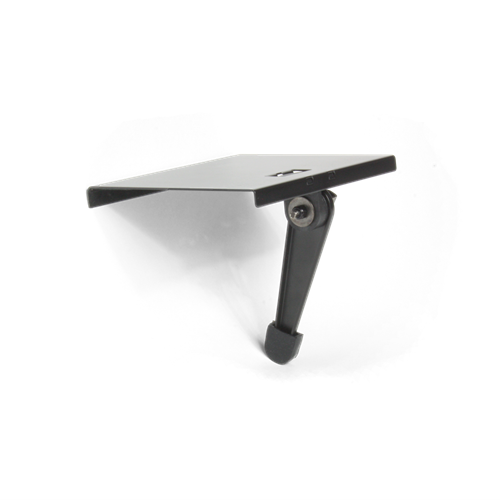

std 008
  • Weight: 0.6 lb (272 g)
  • Dimensions: 6” W x 4.75” D (15 cm W x 12 cm D)
  • Material: Painted Steel
  • Color: Flat Black
  • Shelf support: Front padded lip rests on TV. Adjustable arm with swivel lock supports rear of shelf.

wca 106
  • 0.05 lbs.
wir rx22-4n architectural and engineering specifications
  • The receiver shall be a body-pack type with IR detector lens behind face of the unit.
  • The unit shall have a lanyard for hands-free operation.
  • The receiver shall have a rotary-type volume control.
  • The receiver shall operate for 60 hours with two AA alkaline batteries and for 30 hours per charge with NiMH AA batteries.
  • The receiver shall be charged without battery removal via charger contacts in the case. A drop-in charger accessory shall recharge the batteries in 16 hours when used with CHG 3512 charger.
  • The receiver shall be housed in an impact resistant plastic case with a hinged battery door that does not separate from the receiver.
  • The receiver shall receive 2.3 MHz, 2.8 MHz, 3.3 MHz or 3.8 MHz modulated IR signals with 50 µS de-emphasis.
  • The receiver shall have a 3.5 mm stereo phone jack and accommodate low-impedance mono or stereo earphones and headphones.
  • The receiver shall accommodate neckloop telecoil couplers.
  • The receiver shall provide 125 dB SSPL90 output with HED 021 headphone and 110 dB SSPL90 with EAR 013 earbud-type earphone.
  • The system electrical frequency response shall be 25 Hz to 16 kHz, +1, -3 dB and the S/N ratio shall be 60 dB.
  • The receiver shall have CE, FCC RoHS and WEEE approval.
  • The receiver shall be covered by a five-year parts and labor warranty, excluding earphones, headphones, batteries and chargers.
  • The receiver shall be the Williams Sound model WIR RX22-4.

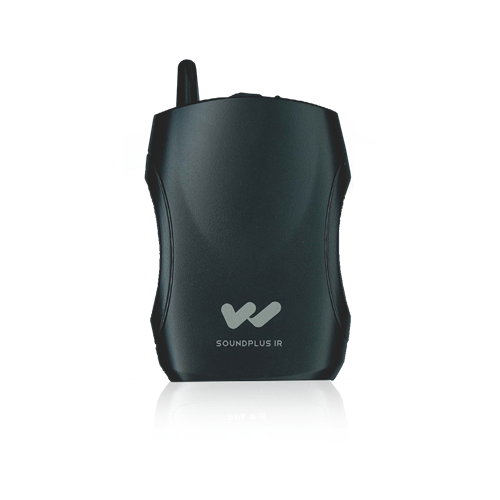

wir rx22-4n
  1. Receiver Style: Body-Pack, dual-lens detector, lanyard
  2. Size: 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm)
  3. Weight: 4.5 oz (127 g) with batteries
  4. Color and Material: Black
  5. Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
  6. Operating Temperature: -10° C to +50° C
  7. Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
  8. Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
  9. Battery Drain: 25 mA, nominal
  10. Charging Contacts: For use only with CHG 3512
  11. Carrier Frequency:
    1. Channel 1: 2.3 MHz, Channel 2: 2.8 MHz
    2. Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
  12. De-Emphasis: 50 uS
  13. FM Deviation: ±50 kHz
  14. Signal-to-Noise Ratio: 60 dB min.
  15. Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
  16. Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
  17. Total Harmonic Distortion: Less than 1%, electrical response
  18. Controls:
    1. ON/OFF/VOLUME: combination thumbwheel knob
    2. Channel Selector: four-position rotary switch
  19. Indicators: Red LED “ON" indicator, flashes to indicate Low battery
  20. Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
  21. Audio Output Power: 15 mW max at 32 Ω
  22. Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
  23. Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
  24. Approvals: CE, FCC, RoHS, WEEE
  25. Warranty: 5 years on receiver, 90 days on accessories
  26. Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
