IR SY1SMALL AREA INFRARED SYSTEM 1

Induction loop systems

Small-area infrared system ideal for use as a small-area assistive listening system or for private TV listening in small conference rooms, hospital rooms, assisted living facilities, medical treatment centers and/or jury deliberation rooms. High-efficiency LEDs display power status and audio input. Power with A/C power supply or standard USB port on a TV. Plug-and-play install with 3.5MM audio input. One- or two-channel operation (2.3 and 2.8 Mhz). Provides coverage area of up to 1300 square feet.

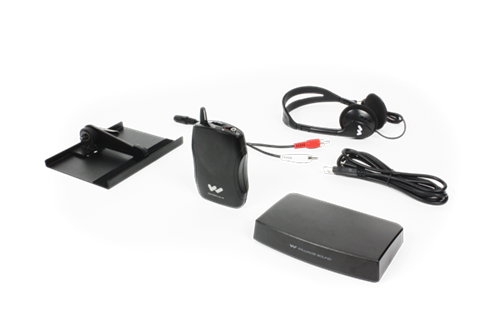

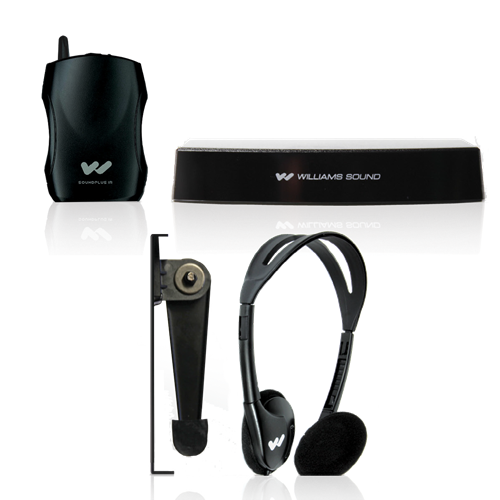

System includes
  • (1) IR T1 small-area infrared transmitter
  • (1) TFP 055 power supply
  • (1) WCA 106 USB micro cable, 6 ft. (USB 2.0 to USB micro)
  • (1) WCA 124 adapter cable (3.5mm F to RCA)
  • (1) WIR RX22-4N infrared receiver
  • (1) STD 008 flat-panel TV mounting bracket
  • (1) HED 021 folding headphones
  • (1) BAT 001-2 AA alkaline batteries.

Features
  • High-efficiency LEDs display power status and audio input
  • Power with A/C power supply or standard USB port on a TV
  • Plug-and-play install with 3.5MM audio input
  • One- or two-channel operation (2.3 and 2.8 MHz)
  • Provides coverage area of up to 1300 square feet

Specifications


bat 001-2
  • Alkaline, 1.2 Volt

hed 021
  • Style: Mono, folding headphone
  • Plug: 3.5mm mono
  • Cord: 39"
  • Driver Size: 30 mm
  • Nominal Impedance: 32Ω
  • Freq. Response: 20 - 20kHz
  • Weight: 52g
  • Max Power Input: 100 mW
  • Sensitivity: 110 dB @ 1kHz
  • Replacement Pads: HED 023 (one pair)

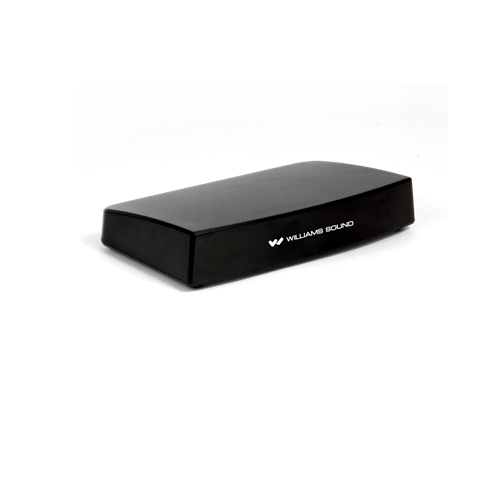

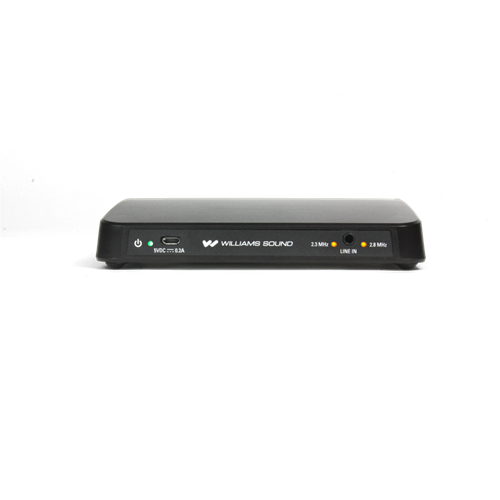

ir t1

  • Dimensions: Width: 5.65”(14.4 cm), Depth: 3.65”(9.3 cm), Height: 1.15”(2.9 cm)
  • Weight: 8.3 oz (235 g)
  • Color: Black
  • Power Supply: TFP 055 – 100-240VAC 50/60Hz Input; 5VDC, 1A USB Output, Universal Supply with international adapters Other USB Power Supply (must be at least 5VDC, 0.2A)
  • Power Cable: USB to micro USB cable
  • DC Power Input: Micro USB connector, 5VDC, 0.2A
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off carrier when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Carrier Frequencies: 2.3MHz (Ch 1) and 2.8MHz (Ch 2) Default at power on = carriers off. Carriers are automatically enabled upon presence of audio.
  • Coverage Area: 1,000 sq. ft (96 sq. m.)
  • Audio Inputs: 3.5mm stereo line level input jack, Ch 1 connected to tip, Ch 2 connected to ring, GND connected to sleeve
  • Audio Indicators: One Yellow LED per channel, lights up and stays on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB at onset of limiting
  • Frequency Response: 100 - 12,000 Hz
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit:
    • Optional: STD 008 TV Top Shelf Mounting Kit
    • Optional: BKT 024 Omnidirectional mount for wall or ceiling mounting
  • Compatible Receivers: WIR RX22-4, WIR RX18
  • Warranty: 2 years
  • Approvals/Regulatory Compliance: CE, RCM, FCC, Industry Canada, PSE, CUL, WEEE, RoHS, CB Scheme

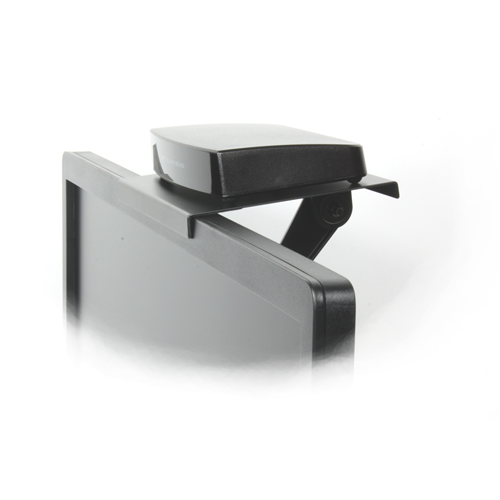

std 008
  • Weight: 0.6 lb (272 g)
  • Dimensions: 6” W x 4.75” D (15 cm W x 12 cm D)
  • Material: Painted Steel
  • Color: Flat Black
  • Shelf support: Front padded lip rests on TV. Adjustable arm with swivel lock supports rear of shelf.
wca 106
  • 0.05 lbs.
wir rx22-4n architectural and engineering specifications
  • The receiver shall be a body-pack type with IR detector lens behind face of the unit.
  • The unit shall have a lanyard for hands-free operation.
  • The receiver shall have a rotary-type volume control.
  • The receiver shall operate for 60 hours with two AA alkaline batteries and for 30 hours per charge with NiMH AA batteries.
  • The receiver shall be charged without battery removal via charger contacts in the case. A drop-in charger accessory shall recharge the batteries in 16 hours when used with CHG 3512 charger.
  • The receiver shall be housed in an impact resistant plastic case with a hinged battery door that does not separate from the receiver.
  • The receiver shall receive 2.3 MHz, 2.8 MHz, 3.3 MHz or 3.8 MHz modulated IR signals with 50 µS de-emphasis.
  • The receiver shall have a 3.5 mm stereo phone jack and accommodate low-impedance mono or stereo earphones and headphones.
  • The receiver shall accommodate neckloop telecoil couplers.
  • The receiver shall provide 125 dB SSPL90 output with HED 021 headphone and 110 dB SSPL90 with EAR 013 earbud-type earphone.
  • The system electrical frequency response shall be 25 Hz to 16 kHz, +1, -3 dB and the S/N ratio shall be 60 dB.
  • The receiver shall have CE, FCC RoHS and WEEE approval.
  • The receiver shall be covered by a five-year parts and labor warranty, excluding earphones, headphones, batteries and chargers.
  • The receiver shall be the Williams Sound model WIR RX22-4.

wir rx22-4n
  • Receiver Style: Body-Pack, dual-lens detector, lanyard
  • Size: 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm)
  • Weight: 4.5 oz (127 g) with batteries
  • Color and Material: Black
  • Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
  • Operating Temperature: -10° C to +50° C
  • Battery Type:  2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
  • Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
  • Battery Drain: 25 mA, nominal
  • Charging Contacts: For use only with CHG 3512
  • Carrier Frequency:
    • Channel 1: 2.3 MHz, Channel 2: 2.8 MHz
    • Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
  • De-Emphasis: 50 uS
  • FM Deviation: ±50 kHz
  • Signal-to-Noise Ratio: 60 dB min.
  • Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
  • Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
  • Total Harmonic Distortion: Less than 1%, electrical response
  • Controls:
    • ON/OFF/VOLUME: combination thumbwheel knob
    • Channel Selector: four-position rotary switch
  • Indicators: Red LED “ON" indicator, flashes to indicate Low battery
  • Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
  • Audio Output Power: 15 mW max at 32 Ω
  • Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
  • Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
  • Approvals: CE, FCC, RoHS, WEEE
  • Warranty: 5 years on receiver, 90 days on accessories
  • Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
