CW6220HBCP Dual Channel UHF True Diversity Kit

Brand
Chiayo
RRP $1,259.00


Increase value Decrease value
Quantity In Cart:
Unit of Measure
EACH



5 Year
Kit Components
Code
Item
Qty
CH-SDR6220-5A
2 Ch UHF Dual 100 channel true diversity receiver Chiayo
1.0
CH-SM6100-5A
100 Ch B/Pack & Mic 520Mhz SM6100-5A Chiayo
1.0
CH-SQ6100C-5A
SQ6100C 100 channel hand held transmitter, metal case condenser capsule.
1.0
False True
Technical Specifications
Brands Chiayo Electronics
Microphone Type Wireless Systems
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

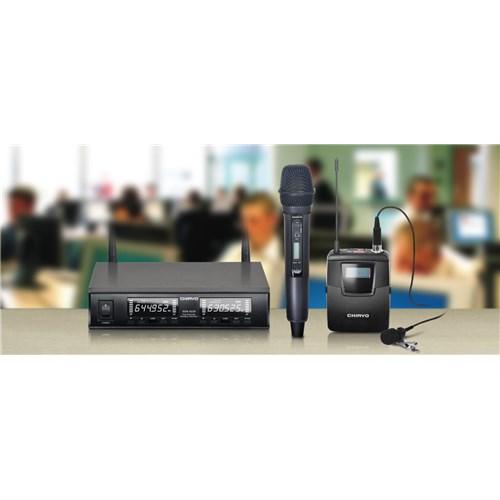

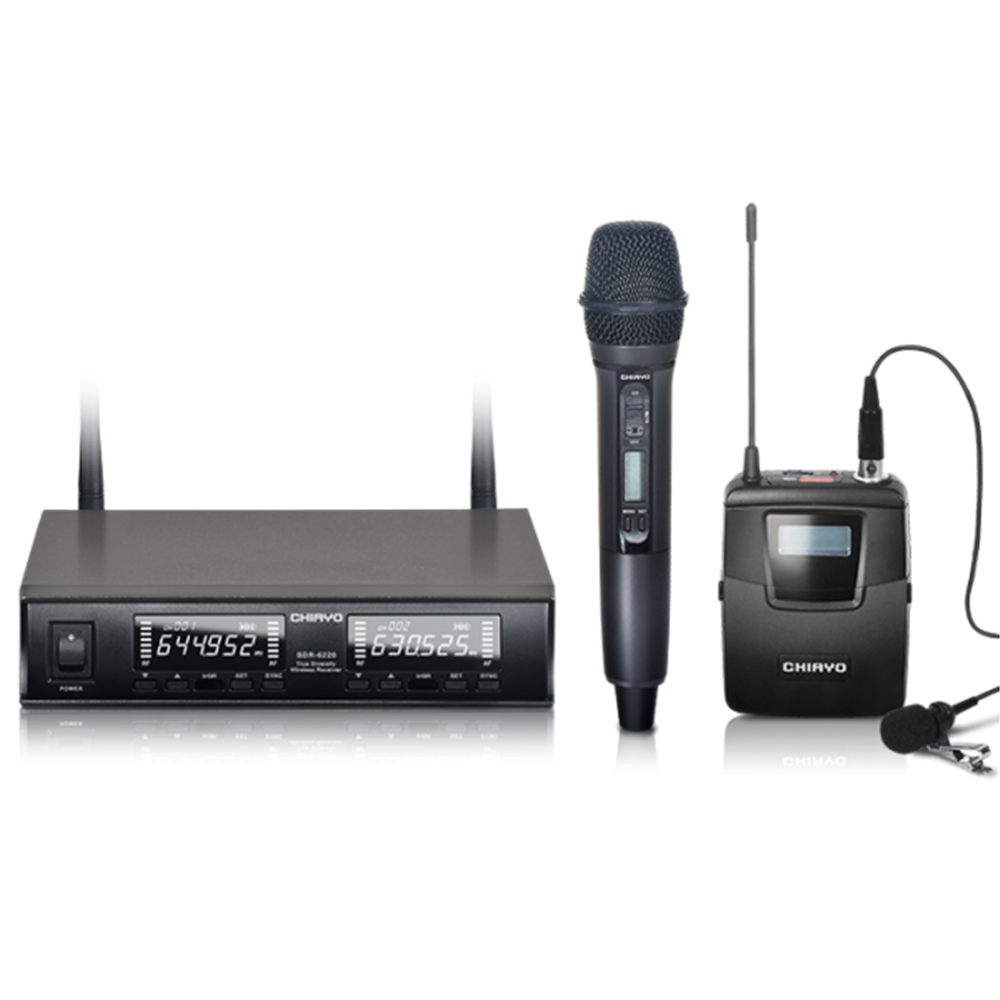

SDR6220 receiver with 1 x SQ6100C Premium hand held transmitter with condenser capsule and 1 x SM6100 beltpack transmitter with MC16 lavalier microphone.

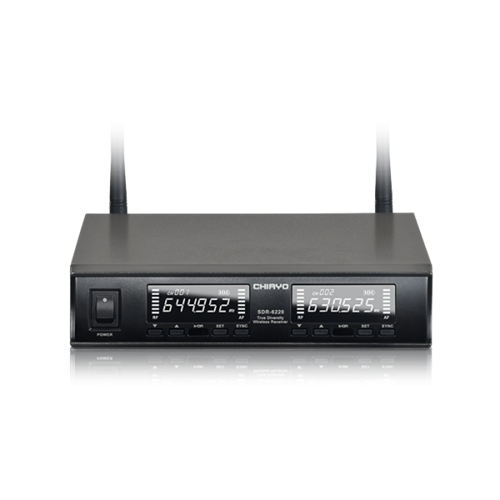

SDR-6220 IrDA
UHF 1/2 19" Dual-Channel 2-Way Sync True Diversity Receiver

SDR-6220 IrDA is a professional wireless microphone system with stylish contour and useful functions. The built-in channel-scanning works with the industry-leading IrDA® 2-way channel synchronizing technology to rapidly complete setting of non-interference channels. High contrast LCD on the front panel displays antenna selection status and setting details, as well as monitoring the battery status and input volume of the connected transmitter to ensure the best sound quality. Easily complies with school, conference, karaoke and public broadcasting requirements.

2-way channel synchronization
Patented in multiple countries and the world's first IrDA® two-way channel synchronization technology. After selecting a clean channel on the transmitter or receiver, a single button will quickly synchronize both units. 100 preset channels available for selection.

True diversity reception
With the most advanced true diversity reception, it provides quality performance with high-stability reception and no dropouts even over long distances.

No more noise
Proprietary pilotone, noise-detector and squelch circuits prevent noise interference. Adjustable SQ to increase receiver range with higher sensitivity and reduce interference with lower sensitivity.

Real-time display
High contrast LCD on the front panel displays antenna selection status and setting details, as well as monitoring the battery status and input volume of the connected transmitter for the audio engineer to handle and ensure the best sound quality.

  • Model:    SDR-6220 IrDA
  • Chassis:    EIA standard 19" metal 1/2U
  • Receiving mode:    True diversity
  • Frequency range:
    • 5a: UHF 520-526 MHz
    • 5b: UHF 566-590 MHz
    • 6: UHF 650-675 MHz
  • Bandwidth:    25 MHz
  • Channel:    Dual
  • Preset frequencies:    100
  • Channel sync:    2-way (RX ⇔ TX)
  • Frequency response:    50 Hz - 18 KHz
  • Peak deviation:    ± 40 KHz
  • Sensitivity:    S/N > 80 dBm at 10 dBμV
  • S/N ratio:    > 110 dB(A)
  • T.H.D. :   < 0.5% @ 1 KHz

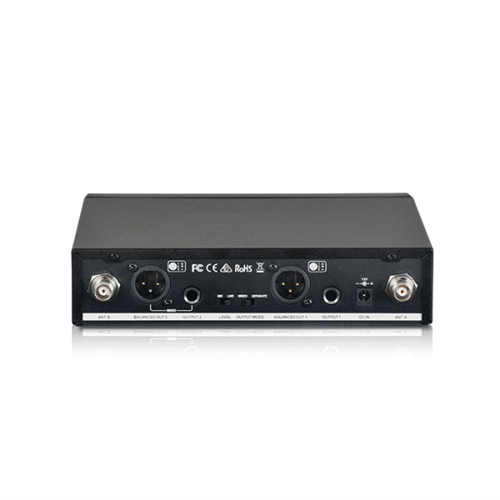

  • Receiving antenna:    Detachable at rear-end, TNC female.
  • Oscillation:    PLL synthesized, frequency stability ± 0.005% (-10 - +60°C)
  • Squelch:    Pilotone & Noise-cancelling dual-squelch circuit
  • Audio connector:    Balanced XLR and unbalanced Ø6.3mm
  • Audio Output Adjustment:    Gain control circuit for adjustment of output volume
  • Output level switch:    MIC-LINE
  • Power supply:    12V DC / 1.0A
  • Dimensions (mm):    200 × 150 × 44
  • Weight (kg):    0.73


SQ-6100 IrDA
Rechargeable Handheld Microphone

  • Model:    SQ-6100 IrDA
  • Frequency range:
    • 5a: UHF 520-526 MHz
    • 5b: UHF 566-590 MHz
    • 6: UHF 650-675 MHz
  • Bandwidth:    25 MHz
  • Preset frequencies:    100
  • Channel sync:    2-way (RX ⇔ TX)
  • Max power output:    35 mW
  • Battery:    AA x2
  • Operating time:    16 hours
  • Material:    Metal
  • Dimensions (mm):    Ø53 × 256
  • Weight (g):    298

SM-6100 IrDA
Rechargeable Beltpack Transmitter

  • Model:    SM-6100 IrDA
  • Frequency range:
    • 5a: UHF 520-526 MHz
    • 5b: UHF 566-590 MHz
    • 6: UHF 650-675 MHz
  • Bandwidth:    25 MHz
  • Preset frequencies:    100
  • Channel sync:    2-way (RX ⇔ TX)
  • Max power output:    35 mW
  • Battery:    AA x2
  • Operating time:    16 hours
  • Material:    ABS
  • Dimensions (mm):    84 × 64 × 23
  • Weight (g):    76


MC-16
Uni-Directional Lavalier Microphone

  • Model:    MC-16+
  • Microphone Type:    Condenser
  • Sensitivity:    -60dB (0dB=1V/Pa at 1KHz)
  • Output Impedance:    1KΩ at 1KHz
  • Polar Pattern:    Uni-Directional
  • Frequency Response:    80Hz - 16KHz
  • Operating Voltage:    1.5~10V DC
  • Current Consumption:    ≦0.5mA
  • S/N Ratio:    ≧60dB
  • Weight (g):    20
