Vocal and instrument processors

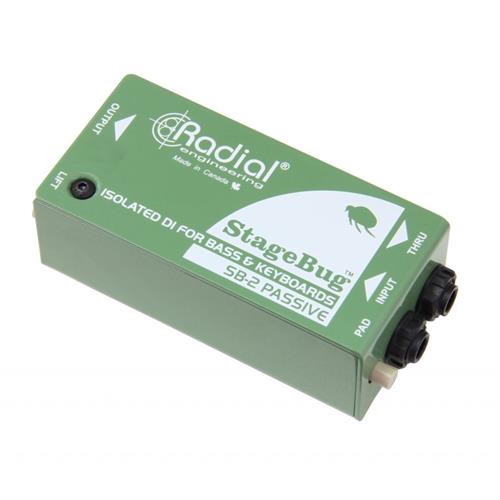

Radial SB-2 - Compact passive DI for bass, keyboards & active instruments

Product Code: RA-SB-2

Brand
Radial Engineering
RRP $169.00
*Recommended Retail Price may not be a true representation of the market price

Quantity In Cart:
Unit of Measure
EACH



3 Year
Features
UPC 6 761010 4065 0 Radial Part No. R800 0120

False False
Technical Specifications
Brands Radial Engineering
Product type Audio Interfaces
Product type DI boxes
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

Passive Direct Box

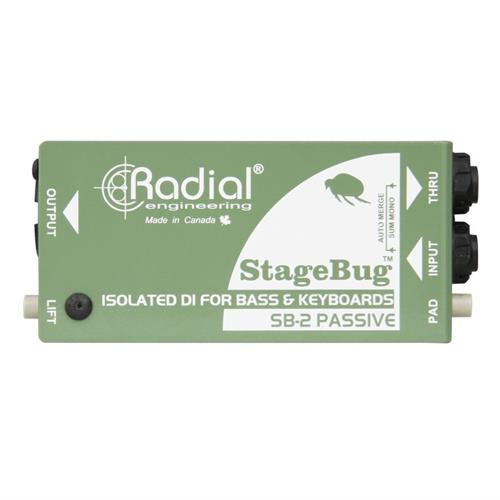

The StageBug SB-2 is a compact passive direct box that is perfect for active basses and keyboards, is small enough to fit inside an instrument case, and features a stereo to mono mix function to save mixer channels.

  • Passive DI for bass, acoustic and keyboard
  • Ultra compact to fit in your guitar case
  • Plug & play easy to use feature set
  • Transformer isolation eliminates noise
Small size and big performance

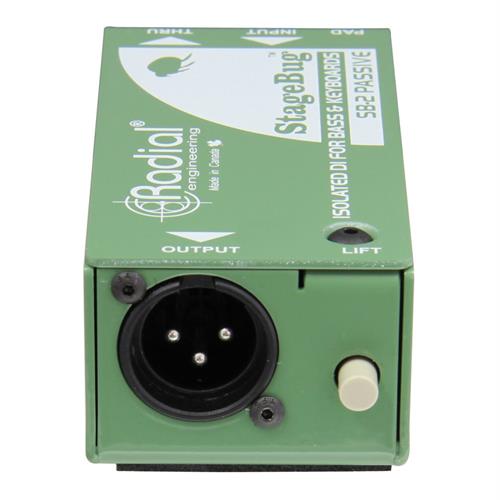

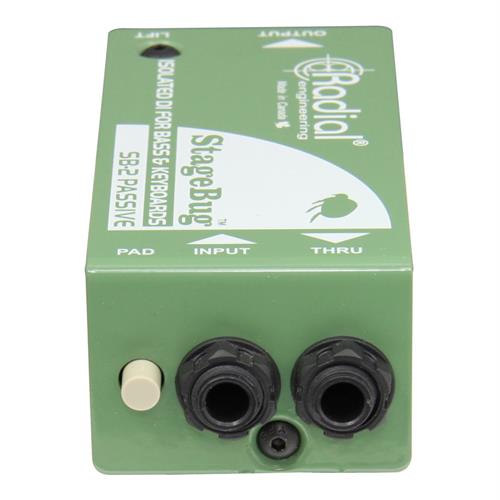

The compact design begins with a ¼" input and thru-put to feed the on-stage amp. This connects to the custom made Eclipse ET-DB3 transformer which performs the impedance matching and balances the signal. When using extra high output instruments, a -15dB pad can be inserted into the signal path. This enables the SB-2 to be used with active basses and digital pianos that often tend to overload the input side of the interface. An innovative stereo-to-mono merge function provides a convenient way to connect stereo keyboards and computers without having to reset the source for mono operation, saving time and input channels on the PA. The SB-2 output features an XLR wired to the AES standard with pin-2 hot. Once connected, the SB-2 delivers a smooth warm sound reminiscent of older vintage gear. The Eclipse ET-DB3 transformer is magical in its ability to handle extreme signal levels with a natural compression that is pleasing to the ears. The transformer also helps eliminate hum and buzz caused by ground loops by isolating the input from the output. This is augmented with a ground lift switch that lifts pin-1 on the XLR for quiet, professional results.

StageBug SB-2 Applications

Using the SB-2 with Acoustic guitar

Plug your acoustic guitar into the SB-2 Passive and it will smooth out the peaks and warm up your tone with a vintage vibe. The compact design makes it perfect for traveling between gigs.

Using the SB-2 with electric bass

Connect your bass to the StageBug SB-2; send the thru signal to your amp and the output to the PA system. Transformer isolation eliminates nasty hum and buzz caused by ground loops.

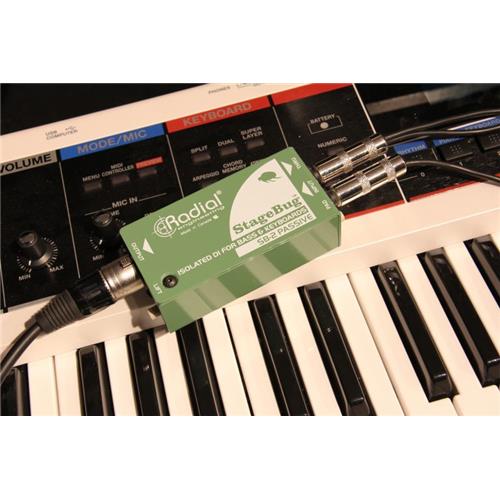

Using the SB-2 with a keyboard

The Passive SB-2 is a perfect go-to direct box when you need to take the output from a keyboard and send it to the PA system. Input and thru jacks automatically merge the stereo signal to mono to save channels while the SB-2 balances the signal to drive distances of 100 meters (300 feet) without noise!

Reviews

"StageBugs offer a portable and affordable DI for pretty much everyone, while still retaining Radial's reputation for quality. At such affordable prices, we may just see a swarm of these guys!"

By Paul Vnuk Jr.

"My biggest regret is not finding out about Radial Engineering direct boxes sooner! We have transitioned through our move to individual monitor mixes from FOH, to a dedicated monitor console, to personal mixers and the Radial direct boxes have continued to work flawlessly through all of our upgrades."

By David Robinson

Part no: R800 0120 00
