XL2 Spectral Limits license 600 000 376

Product Code: NT-XL2-SL

Brand
NTI Audio
RRP: POA


Quantity In Cart:
Unit of Measure
EACH



1 Year
True False
Technical Specifications
Brands NTi Audio
Application Quality Control
Device Type Software & options
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

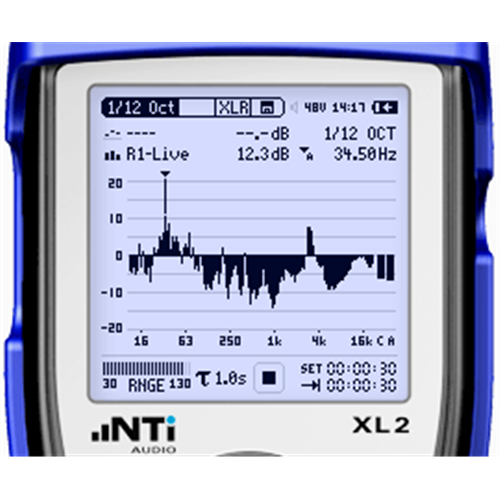

The Spectral Limits Option extends the XL2 function range in both, the sound and vibration mode. It adds noise curves, trace capturing, relative curve display and comprehensive tolerance handling for the FFT Analysis and high resolution spectral analysis up to 1/12th octave. The vibration mode is enabled upon installing the vibration option.

Features:

  • FFT and 1/12 octave Analyzer
    • Capturing of multiple readings into the internal memory
    • Comparing measurement results against captures with relative or absolute curve display
    • Comprehensive tolerance handling with tolerance masks based on captures for passed/failed measurements
    • Export and import of tolerance and capture files
    • Recording of linear wav-files (24 bit, 48 kHz); (requires optional Extended Acoustic Pack)
  • 1/12 octave Spectral Analyzer
    • High resolution RTA function 1/12 Oct + Tol
    • Selectable 1/1, 1/3, 1/6 and 1/12 octave resolution
    • Frequency band listening at rear speaker
    • Sound Mode: 11.5 Hz to 21.8 kHz
    • Vibration mode: 0.73 Hz to 1.36 kHz
  • FFT Analyzer
    • High-resolution Zoom-FFT with selectable frequency ranges and resolution up to 0.4 Hz in the range of
    • Sound mode: 5 Hz to 20 kHz
    • Vibration mode: 1 Hz to 20 kHz
  • Sound Level Meter
    • True peak level in 1/1 and 1/3 octave resolution
  • Noise Curves
    • In accordance with ANSI S12.2-2008, -1995 and ISO 1996
