Mixer 8In 2Out MX82 Australian Monitor

Product Code: AJ-MX82

Brand
Australian Monitor
RRP $1,230.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
False False
Technical Specifications
Brands Australian Monitor
Product type Mixer
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

MX82

8 Channel Stereo Mixer

4 XLR, 4 RCA inputs

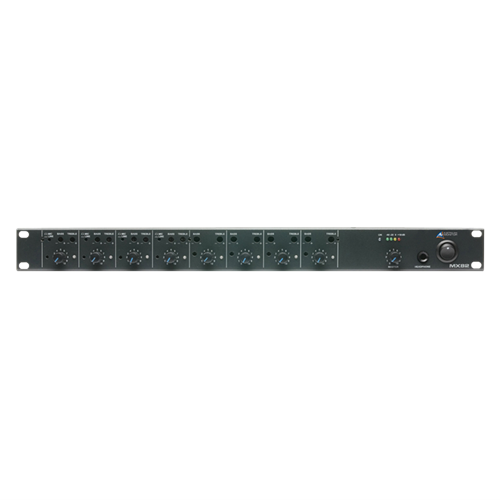

The MX82 is a 1RU stereo mixer that features four mic/line inputs and four stereo inputs.
Each of the four mic/line channels consists of a balanced XLR input switchable between mic and line level, 15dB of gain trim across the mic/line inputs plus individually switchable phantom power (15VDC). The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers, mixers or recording devices.

An internal dip switch allows the first 4 inputs to be routed to the direct output, the master outputs or both. You can also feed the optional tone generator (AMTONE1) to the direct outs if required. Input 1 can also be pre or post master if you require, allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs.


4 XLR inputs switchable between microphone and line level, each with direct output
• 4 stereo dual RCA line level inputs. Each input has front panel microphone/line switching (inputs1-4), treble and bass control, +/-15dB of gain trim and dual colour status LED indication
• Single master volume control
• Phantom power individually switchable for XLR inputs
• Priority muting via optional muting modules (AMMUTE1 or AMMUTE3). 2 required.
• Remote Volume Controlled Attenutation (VCA) via optional module (AMVCA). 2 required.
• Tone generation via optional module (AMTONE1)

Specifications

  • Total Inputs: 8
  • Frequency Response: 20Hz - 20kHz
  • Input Channels: 8 MIC or Line
  • THD+N: < 0.1%
  • Output Channels: 1 Stereo
  • Signal to Noise Ratio: > 90dB
  • Mounting: 1RU
  • Input Sensitivity MIC: 4.36mV / Line: 775mV / RCA: 200mV
  • Warranty: 5 years
  • Input Voltage: 230Vac 50Hz
  • Product Dimensions:
    • (W x D x H) 482mm x 182mm x 44mm Shipping Dimensions
    • (W x D x H) 500mm x 267mm x 94mm
  • Net Weight: 2.8 Kg
  • Shipping Weight: 3.8 Kg
  • GTIN EAN: 9323383011106
