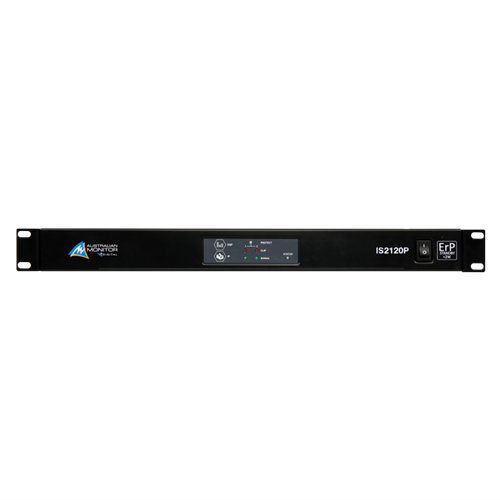

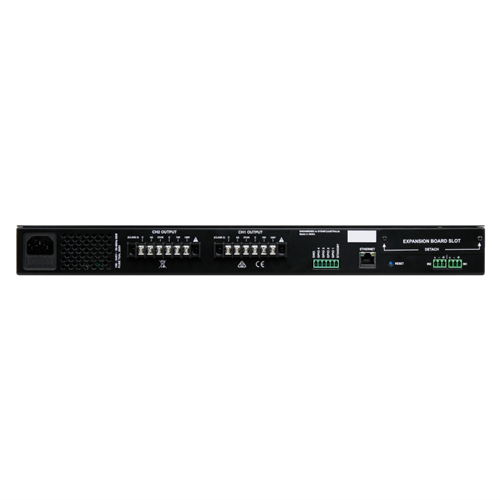

Is Series Dsp Pwr Amp 2 X 120W IS2120P Australian Monitor

Product Code: AJ-IS2120P

Brand
Australian Monitor
RRP $1,765.00


Quantity In Cart:
Unit of Measure
EACH



5 Year
False False
Technical Specifications
Brands Australian Monitor
Amplifier Type Power Amp
Channel count 2
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

IS2120P


2 x 120W Power Amplifier

Ethernet, DSP, Dante® Support

The ISP series is Australian Monitor's premium offering of multichannel Class D power amplifiers, delivering high quality audio reinforcement in the following options - Dual channel 120W or 250W and Quad channel 120W or 250W.

Featuring Ethernet control, Full Featured DSP, ErP Low Power Standby, Dante® support and efficient Class D amplifiers.

The ISP also features an embedded User Interface which can be accessed from any device supporting an HTML5 compliant web browser.
Configuration Options:
  • IS2120P - 2 inbuilt line level inputs
  • IS2120P + DM4x4 - 2 inbuilt line level inputs plus expansion slot of 4 Dante Inputs and 4 Dante Outputs
  • IS2120P + ANALOGUE4 - 2 inbuilt line level inputs plus expansion slot of 4 line level inputs

  • 2 x 120W amplifier
  • 4 ohm, 70V and 100V output options
  • Class D topology
  • Ethernet Control
  • Embedded user interface accessible using any HTML5 web browser
  • Full DSP - Input Matrix, Filters, Parametric Ex, Compressor / limiter, Delay, Mute, Inversion
  • 4 software configurable general purposes input/outputs
  • ErP(1275/2008/EC) Low Power Standby (<2W)
  • Dante® Support using DM4x4 Expansion Card
  • Analogue expansion card option. ANALOGUE 4

Specifications

  • Output Power per Channel: 120W
  • Frequency Response: 75Hz - 16kHz
  • Output Channels: 2
  • THD+N: < 0.05% (-3dB)
  • Output Mode: 4 Ohm-70V-100V
  • Signal to Noise Ratio: > 100dB
  • Input Voltage: 100-240Vac 50-60Hz
  • Input Sensitivity: 1Vrms
  • Mounting: 1RU
  • Cooling: Fan-assisted
  • Warranty: 5 years
  • Product Dimensions:
    • (W x D x H) 483mm x 325mm x 44.5mm Shipping Dimensions
    • (W x D x H) 525mm x 425mm x 120mm
  • Net Weight: 7.2 Kg
  • Shipping Weight: 9.8 Kg
  • GTIN EAN: 9323383019973
