DESCRIPTION:

The IR SYS30 SoundPlus® T3 PoE System from Williams AV combines the advanced T3 medium-area infrared transmitter with a power-over-Ethernet (PoE) kit, making power delivery effortless and efficient. Featuring cutting-edge LED technology, the two-channel T3 transmitter provides stronger and more reliable audio signals, delivering broader coverage compared to previous models.

Perfect for spaces that require precise audio coverage without signal spillover into adjacent rooms, the T3 system offers comprehensive coverage of up to 32,000 sq ft (2,972 sq m). This versatile system includes the T3 transmitter, handheld receivers, headphones, neckloop, charger, mounting bracket, and an ADA-compliant wall plaque, ensuring accessibility and clear audio for all users.

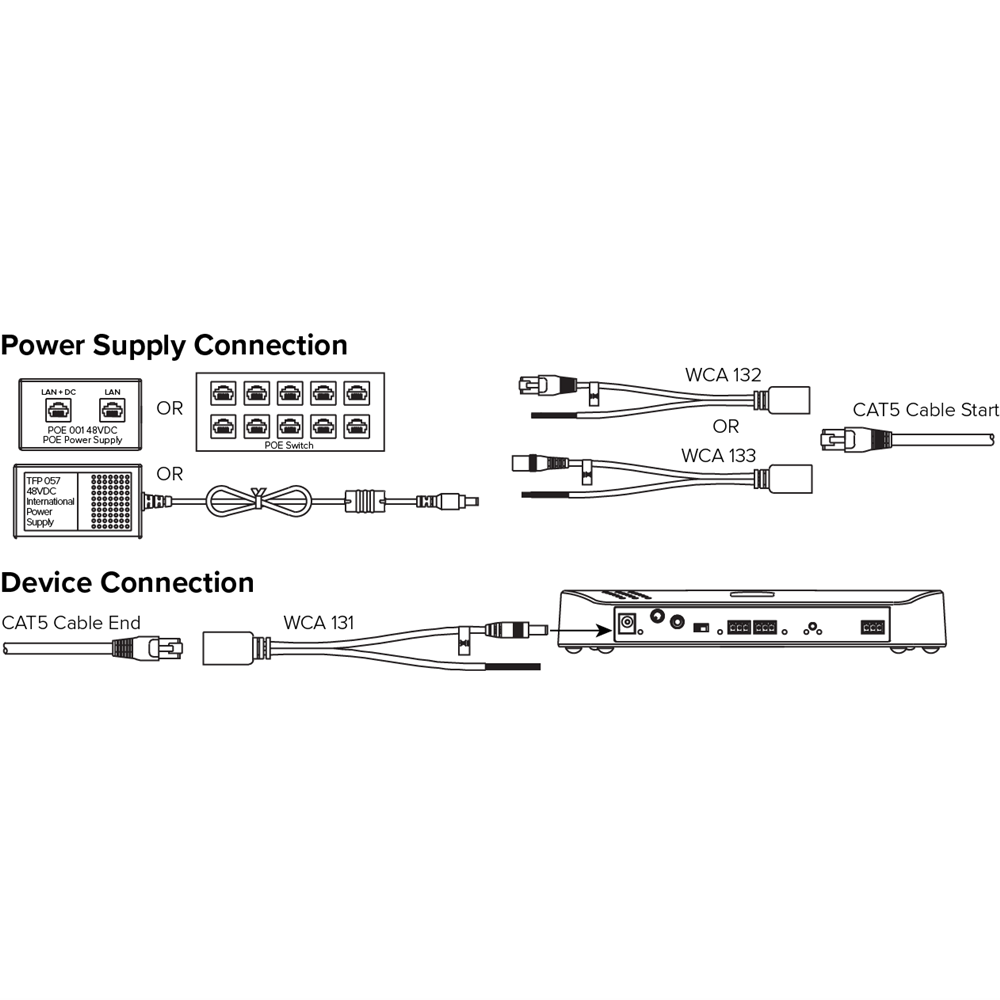

The included PoE kit simplifies installation with a cable assembly that provides direct power supply wiring and easy connection to a network switch. Ideal for both commercial and professional environments, the SoundPlus® T3 PoE System ensures seamless audio transmission with minimal setup, making it the perfect solution for your audio and assistive listening needs.

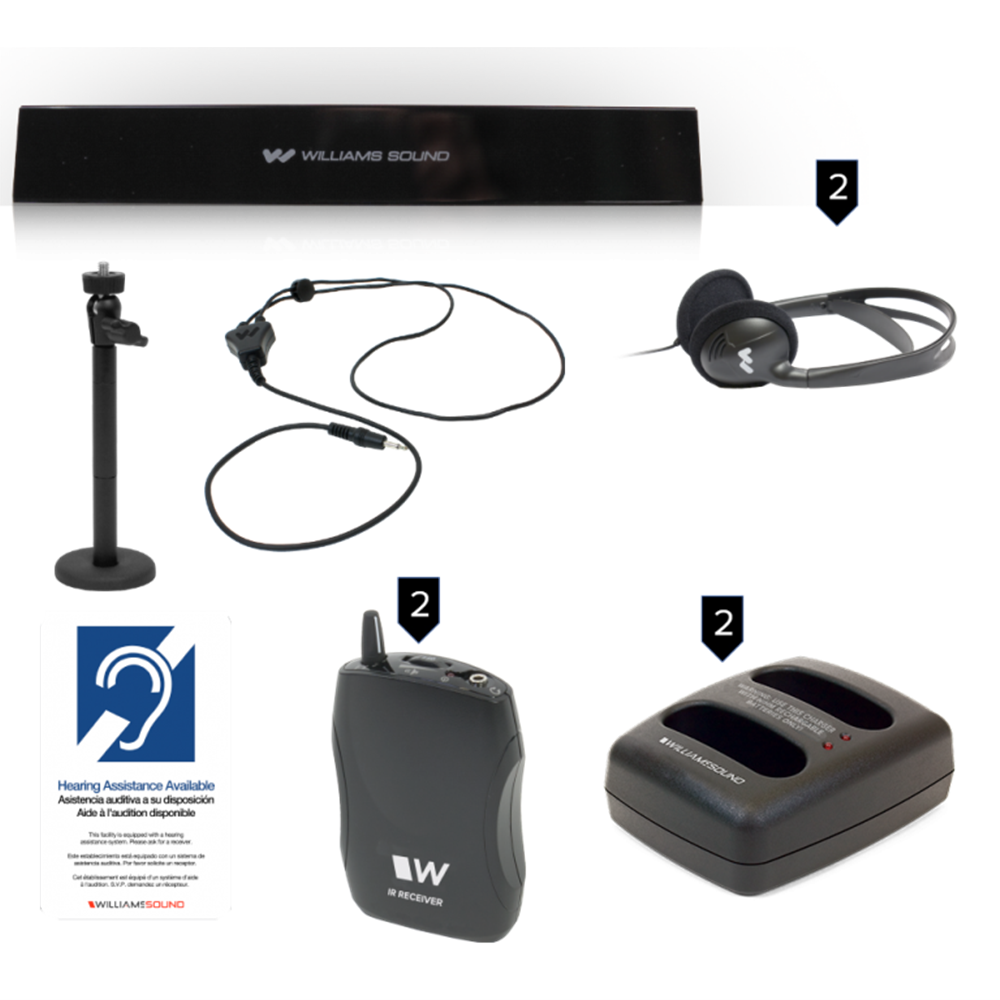

SYSTEM INCLUDES:

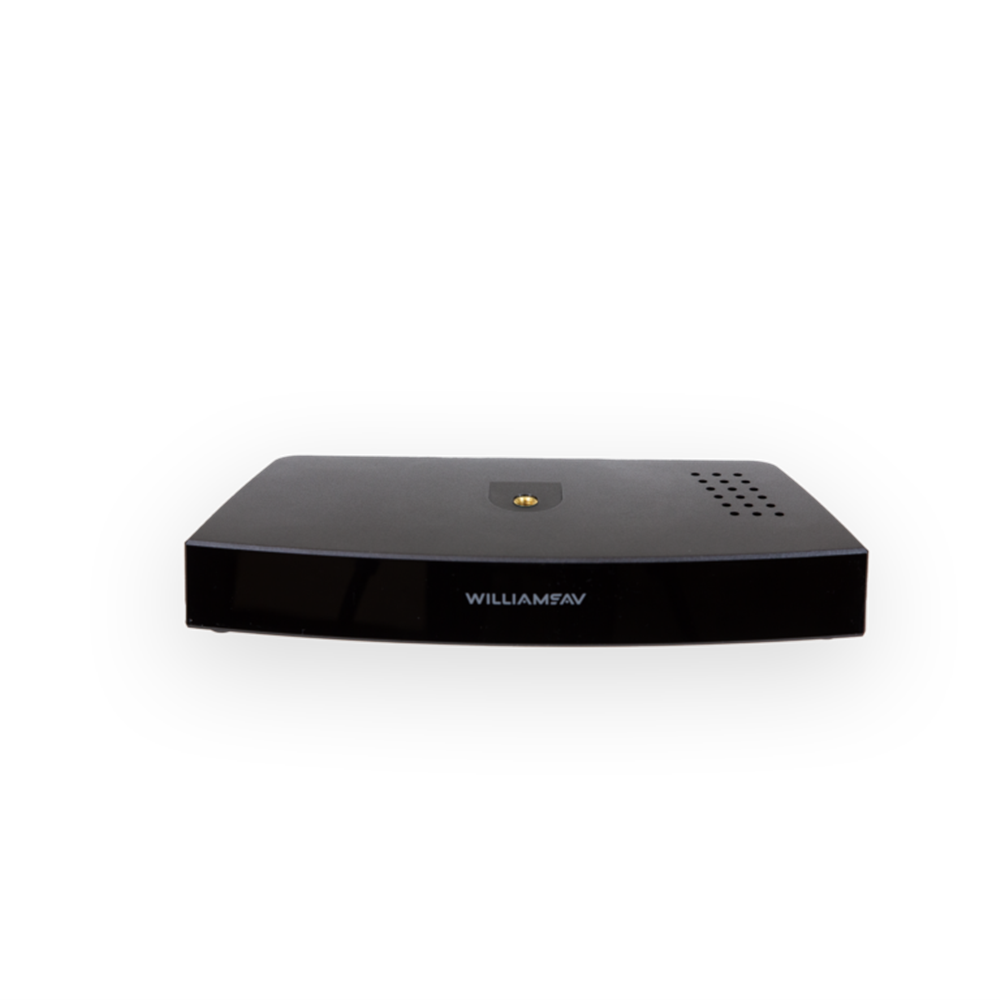

1x WI-IRT3 – Infrared Transmitter

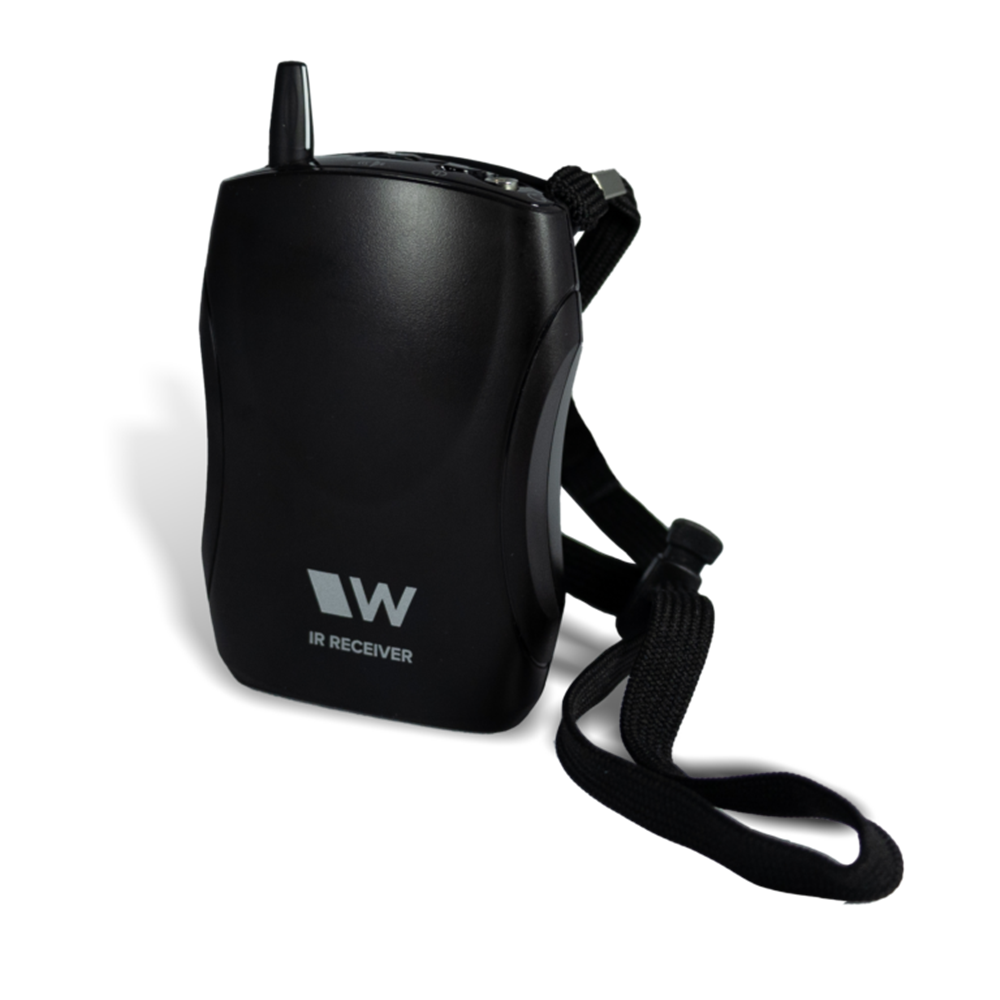

2x WI-WIRRX22-4N – Handheld IR Receivers
2x WI-HED027 – Folding, Mono Headphones

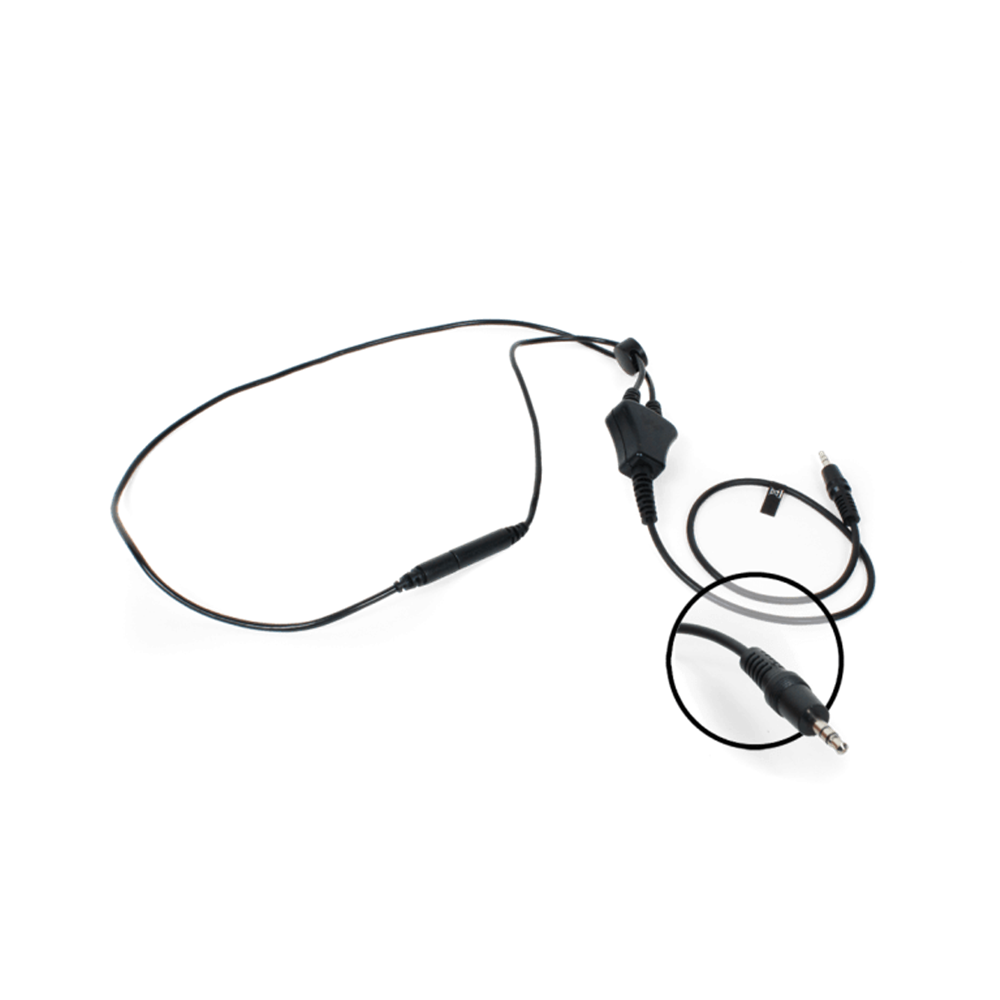

1x WI-NKL001 – 18″ Mono Neckloop

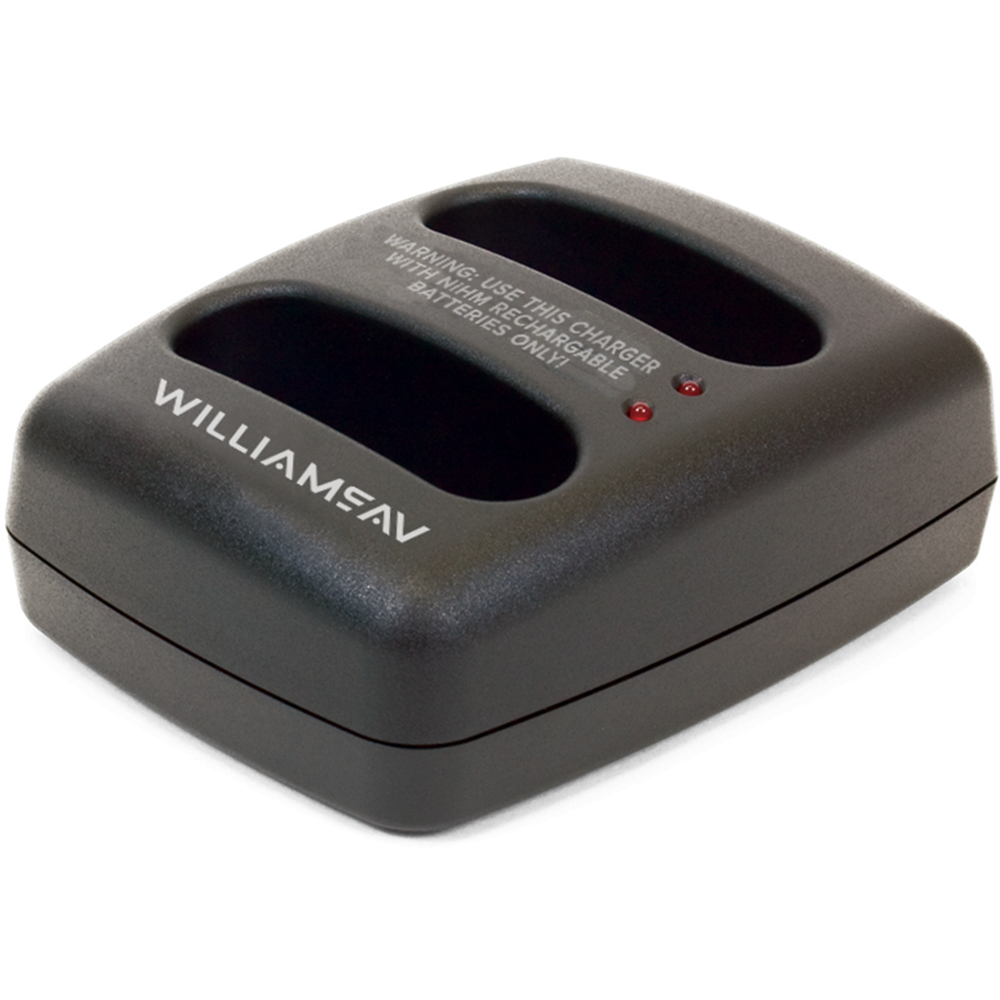

1x WI-CHG3502 2-Bay Body-Pack Charger

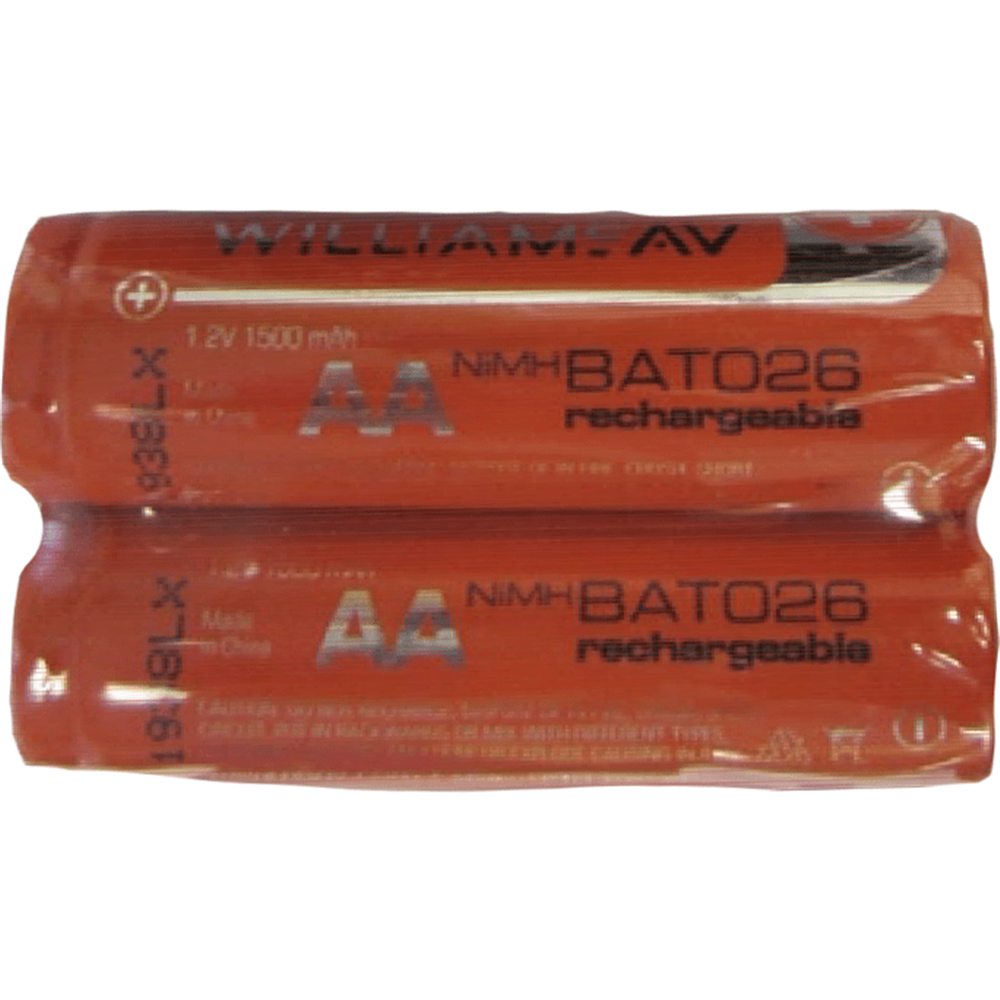

2x WI-BAT026 NiMH rechargeable batteries
1x WI-POEKT1 – Remote power kit including wire cable assembly (WCA 131 and WCA 133)

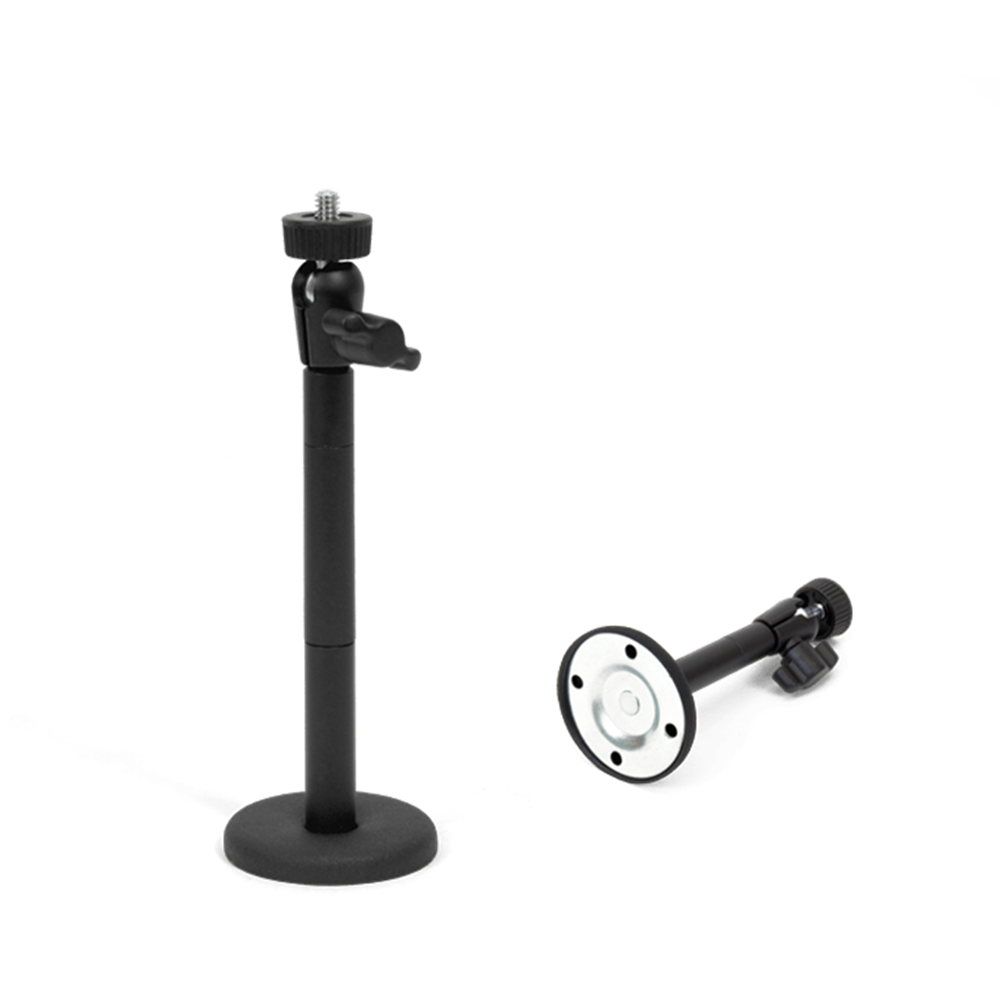

1x WI-BKT024 – Wall/Ceiling Mounting Bracket

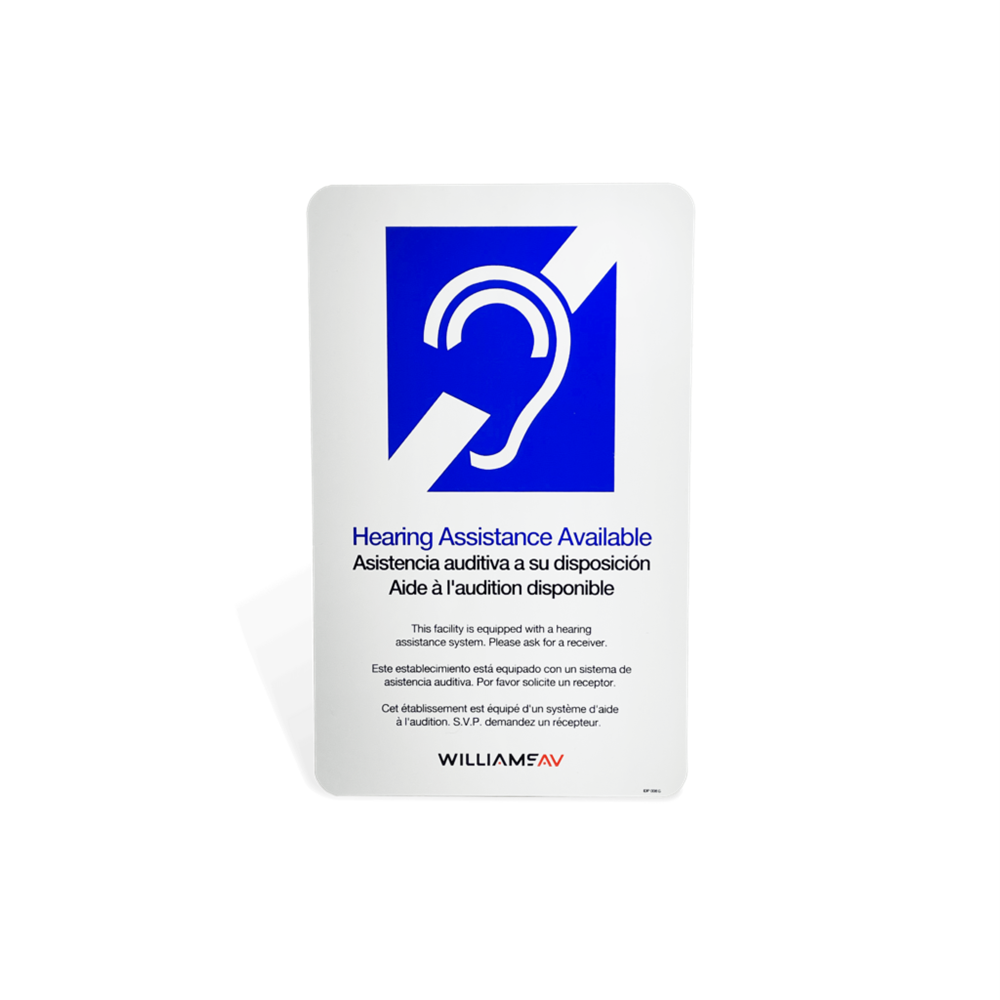

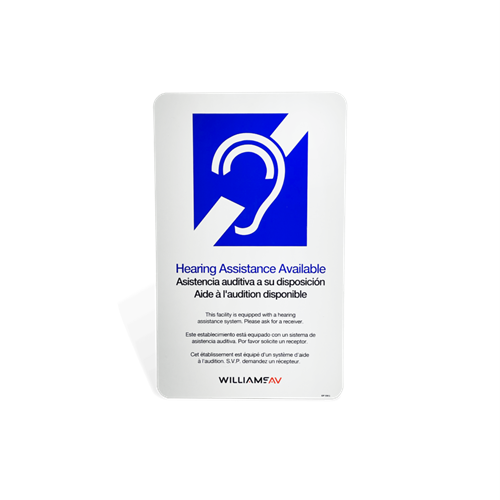

1x WI-IDP008 – ADA wall plaque

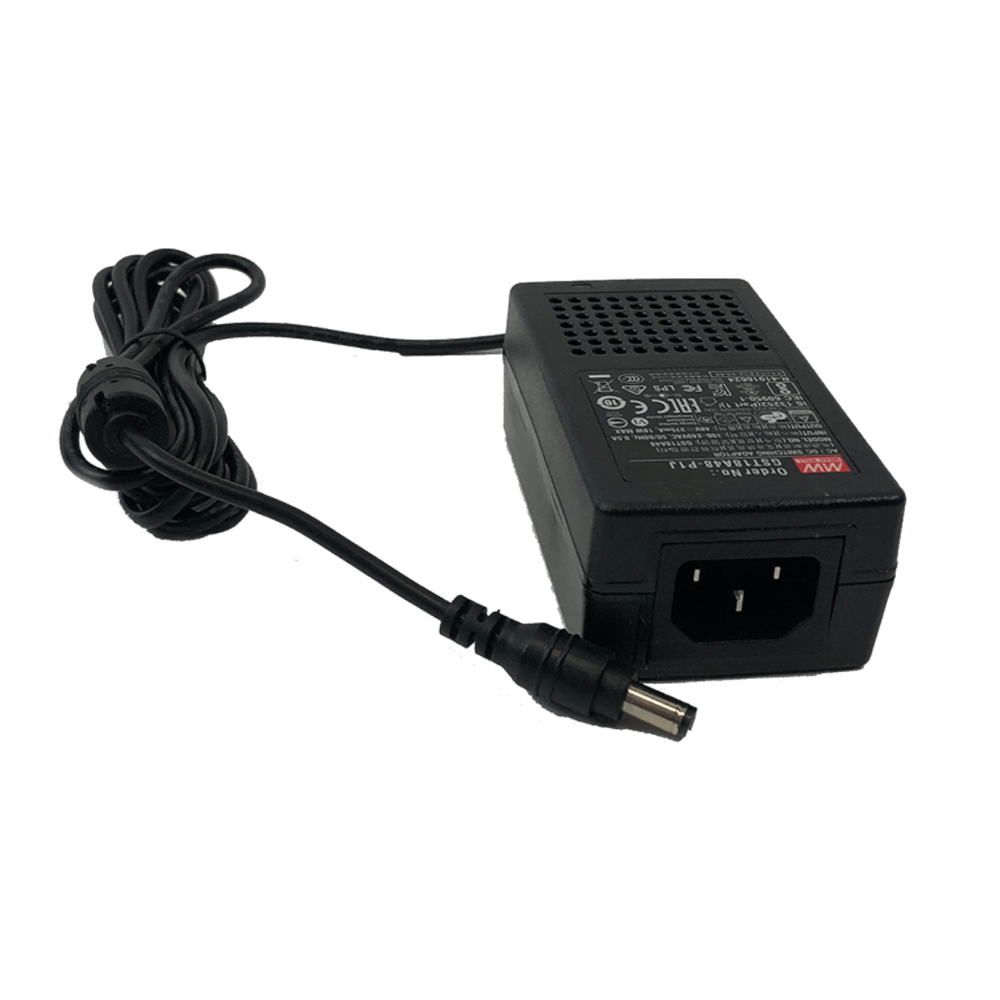

1x WI-TFP057 – Power supply

How It Works
The IR T3 can be controlled remotely via RS-232 commands. The commands include:
  • Powering the unit on/off
  • Remotely setting the IR frequency (2.3/2.8 or 3.3/3.8)
  • Muting the outgoing audio without powering off
  • Turning back panel LEDs on or off
  • Troubleshooting abilities

SPECIFICATIONS:

  • Dimensions: 9.0″ W (229 mm) x 3.8″ D (97 mm) x 1.4″ H (36 mm)
  • Weight: 0.84 lb. (0.38 kg)
  • Color: Black
  • Power Supply: WI-TFP057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
  • DC Power Input: 2.1 mm ID barrel connector, 48 VDC, 0.2A, centre positive
  • Power Indicator: Green LED
  • Sleep/Power Save Mode: Shuts off IR when no audio present for 12 minutes
  • Modulation: FM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
  • Transmit Frequencies: 2.3, 2.8, 3.3, 3.8 MHz
  • Coverage Area: Up to 19,000 sq ft (1,765 sq m) in single-channel mode with the WI-IRRX20 stethoset receiver. Up to 32,000 sq ft (2,972 sq m) in single-channel mode with the WI-WIRRX22-4N handheld receiver
  • Audio Inputs: Phoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
  • Audio Indicators: One yellow LED per channel. Lights up and stay on steady with minimum audio level.
  • Signal-to-Noise Ratio: 70 dB (line input)
  • Frequency Response: 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs) 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
  • Operating Requirements: 32°-122°F (0-50°C)
  • Mounting Kit: Wall or Ceiling mount: WI-BKT024 Omnidirectional mount
  • Compatible Receivers: WI-WIRRX22-4N and WI-IRRX20
    Note: The WI-IRSYS30 replaces the WI-IRSY7.
