Products

PTZ Cameras

Entry E-Learning Tracking Cam DL10 Aver

Product Code: AF-DL10

Brand
Aver
RRP $1,449.00


Quantity In Cart:
Unit of Measure
EACH



3 Year
False False
Technical Specifications
Brands AVer
Native Resolution 1080p
  • Details
  • Downloads
  • Where to Buy
  • Ordering
  • Specifications

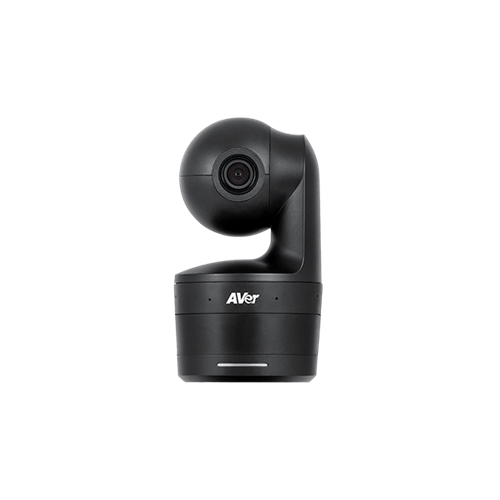

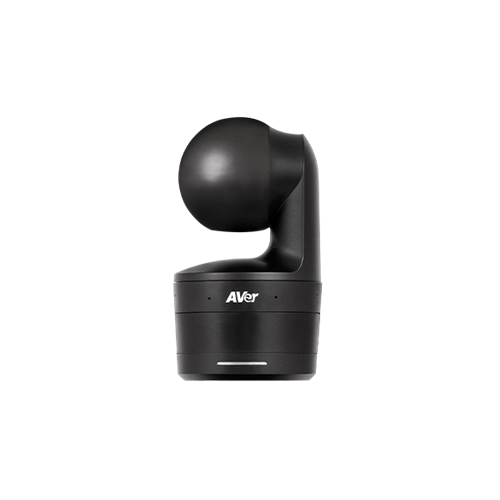

DL10


Distance Learning Tracking Camera
Track Further, Learn Bigger

Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.

  • Portable & Light-Weight
  • 3 AI Tracking Modes
  • Gesture Control
  • Built-In Mic
  • IP & USB Outputs
  • 2 Megapixels
  • 6X Total Zoom
  • Sleep Mode
  • Distance Learning Ready
  • Perfect for Hybrid Teaching

Light-Weight & Portable
The DL10 weighs only 745g, giving teachers freedom to take work anywhere - just place the DL10 directly on the desk or on the included tripod. USB plug-and-play functionality allows teachers to start distance teaching anytime, anywhere.


AI Auto Tracking
Equipped with industry leading AI auto-tracking algorithms, the DL10 can share the teacher’s every move with the students. The DL10’s AI does all the tracking work, without requiring any annoying add-on sensors or devices. Never worry about walking out of the frame or going out of focus again, remote students can see you on the screen wherever you go.


Balanced Zoom Ratio
With budget in mind for schools, the DL10 is the perfect solution: 3X optical zoom delivers clear details, and 6X total zoom ratio is perfect for online or hybrid teaching in any standard K-12 classroom or at home.


Noise Suppression Microphones
The DL10’s built in advanced noise suppression technology detects the teacher’s speech while decreasing environmental noises such as keyboards, mouses, and books, delivers clearer sound quality for an excellent audio visual experience.


Sleep Mode for Privacy
Simply turn off your laptop or the software when you finish teaching, and the DL10 will go to Sleep Mode and switch off all functionality within 10 seconds. When it’s time to start teaching again, the DL10 will resume right where you left off with tracking and other settings unchanged. The DL10 makes privacy protection the way it should be: easy.


Innovative Gesture Controls
Gesture control allows the teacher to use intuitive gestures to turn on and off tracking, adjust shooting angles for bodies, etc. without touching the screen or using the keyboard, mouse, or remote control.


Specifications

Camera

  • Image Sensor: 1/2.8" 1080p Low Lux CMOS
  • Effective Picture Elements: 2 Megapixels
  • Output Resolutions: 1080p/60 (IP Streaming & USB)
  • Minimum Illumination: 0.5 Lux (IRE50, F2.0, 30fps)
  • S/N Ratio: ≥ 50 dB
  • Gain: Auto, Manual
  • TV Lines: 800 (Center/Wide)
  • Shutter Speed:
    • 1/4 to 1/10,000 sec (60 Hz)
    • 1/3 to 1/10,000 sec (50 Hz)
  • Exposure Control: Auto, Manual, WDR
  • WDR: Yes
  • White Balance: Auto, Manual
  • Optical Zoom: 3X
  • Digital Zoom: 2X
  • Viewing Angles:
    • DFOV: 90° (Wide) to 35.8° (Tele)
    • HFOV: 82° (Wide) to 31.7° (Tele)
    • VFOV: 51° (Wide) to 17.9° (Tele)
  • Focal length: f = 3.3 mm (Wide) to 9.7 mm (Tele)
  • Aperture (Iris): F = 2.0 (Wide) to 3.7 (Tele)
  • Minimum Working Distance: 0.5 m (Wide), 1.0 m (Tele)
  • Pan/Tilt Angles: Pan : ±170°, Tilt : ±90°
  • Pan/Tilt Speed (Manual):
    • Pan: 1° to 100°/sec
    • Tilt: 10.8° to 100°/sec
  • Preset Speed: Pan : 200°/sec, Tilt : 200°/sec
  • Preset Positions: 10 (IR), 256 (IP & USB)
  • Camera Control - Interfaces: IP, USB
  • Camera Control - Protocols: VISCA (IP), CGI (IP), USB
  • Image Processing: Noise Reduction (2D/3D), Flip, Mirror, WDR
  • Power Frequencies: 50 Hz, 60 Hz

AI Auto Tracking Functions

  • Tracking Modes: Presenter Mode, Zone Mode, Hybrid Mode
  • Gesture Control: Yes (Tracking On/Off, Full/Upper Body)

Privacy Protection Mechanisms

  • Protection Modes: Privacy Mode, Sleep Mode

Audio

  • Channels:
    • Line in: 2ch Stereo
    • Mic in: Mono
  • Codecs: AAC-LC (48, 32, 16, 8K), PCM (48K)
  • Sample Rates: 48, 32, 16, 8 KHz

Microphones

  • Built-in Microphones: 2 (Omnidirectional)
  • Noise Suppression: Yes
  • Pickup Range: 5 m
  • Sensitivity: -33 dBFS
  • Frequency Response: 30 Hz to 20 KHz
  • Maximum SPL: 129 dB SPL at 0.5 m

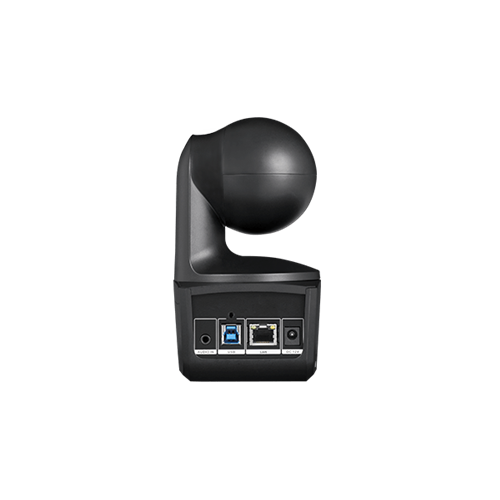

Interface

  • Video Outputs: IP, USB
  • Audio Outputs: IP, USB
  • Audio Inputs: Line in, Mic in

General

  • Power Requirement: AC 100 - 240V to DC 12V/2A
  • Power Consumption: 11W
  • PoE+: N/A
  • Dimensions (W x H x D): 92.4 x 164.0 x 94.4 mm
  • Net Weight: 0.745 kg
  • Application: Indoor
  • Tally Lamp: N/A
  • Security: Kensington Slot
  • Remote Control: Infrared
  • Operating Conditions:
    • Temperature: 0°C to 40°C
    • Humidity: 20% to 80%
  • Storage Conditions:
    • Temperature: -20°C to 60°C
    • Humidity: 20% to 95%

IP Streaming

  • Resolution: 1080p 60fps
  • Network Video Compress Formats: H.264, MJPEG (Web Page)
  • Network Audio Compression Formats: AAC-LC
  • Sample Rates: 48, 32, 16, 8 KHz
  • Maximum Frame Rate: 1080p 60fps
  • Bit-Rate Control Modes: VBR, CBR
  • Bit-Rate Range Setting: 512 Kbps to 32 Mbps
  • Network Interface: 10/100 Base-T
  • Multi-Stream Capability:
    • 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
    • 3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
  • Network Protocols: IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP
  • NDI®|HX Capability: N/A

USB

  • Connector: USB 3.1 Gen 1 Type-B
  • Video Formats: MJPEG, YUY2
  • Maximum Video Resolution: 1080p
  • USB Video Class (UVC): UVC 1.1
  • USB Audio Class (UAC): UAC 1.0

Web UI

  • Live Video Preview: Yes:
  • Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment: Exposure, White Balance, Picture
  • Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

  • IP Search and Configuration Tool: Supports Windows® 7 or later
  • PTZ Management: Supports Windows® 7 or later
  • PTZ Control Panel: Supports iOS & iPadOS® 9 or later
  • OBS Plugin for PTZ Cameras: Supports Windows® 8 or later, macOS® 10.13 or later
  • CaptureShare: Supports Windows® 7 or later, macOS® 10.14 or later

Warranty

  • Camera: 3 Years
  • Accessories: 1 Year
  • Package Contents:
    • Camera

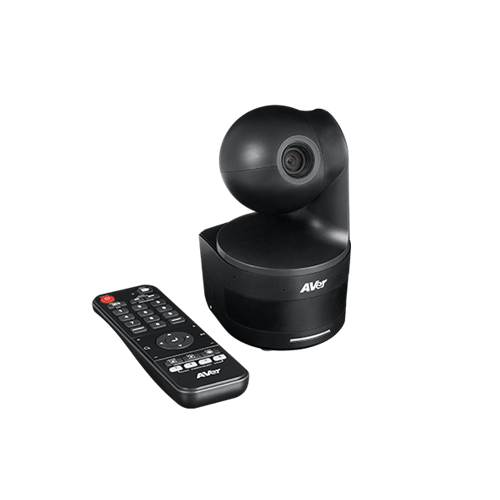

    • Remote Control
    • Power Adapter
    • Power Cord
    • USB Cable
    • Cable Ties (x3)
    • Cable Fixing Plate
    • M2 x 4mm Screws (x2)
    • 1/4"-20L 7.5mm Screw (x1)
    • Quick Start Guide
  • Optional Accessories:
    • Wall Mount Kit
    • Brackets (x2)
    • M4 x 8mm Screws (x2)
    • 1/4"-20L 7.5mm Screw (x1)
    • Wall Mount Kit Installation Guide
    • Ceiling Mount Kit
    • Brackets (x2)
    • M3 x 6mm Screws (x3)
    • 1/4"-20 L7.5mm Screws (x3)
    • Ceiling Mount Kit Installation Guide
